BLDC Solar Pump vs Normal Solar Pump: Which Is Better?
Introduction :
In the world of renewable energy, technology moves fast. If you are looking to install a solar pumping system, you have likely come across two main options: the modern BLDC solar pump and the traditional (Normal) AC solar pump.
At Morca, we believe that understanding the technology inside your pump is just as important as the water it provides. Making the right choice today can save you thousands in maintenance and electricity over the next decade.

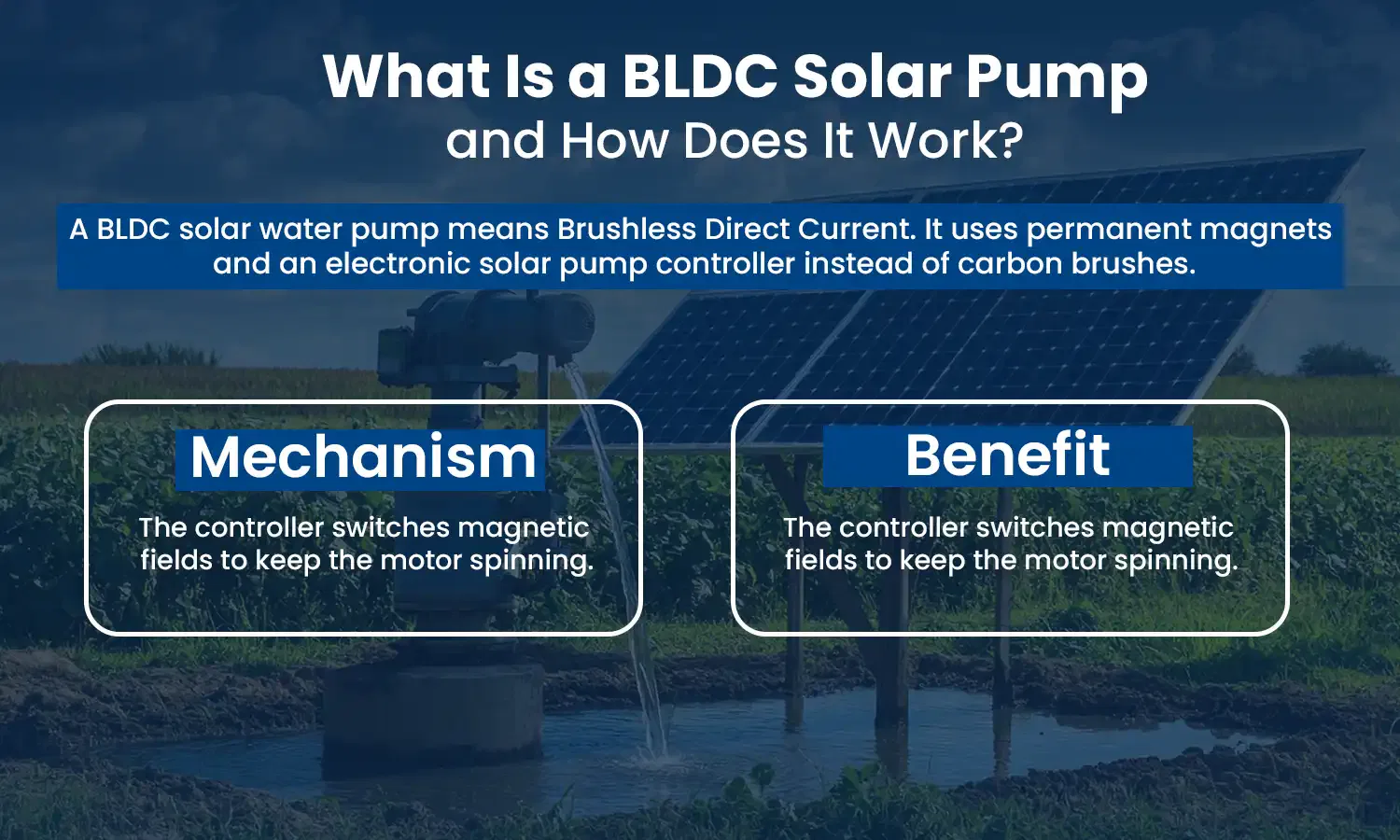

What Is a BLDC Solar Pump and How Does It Work?
A BLDC solar water pump stands for Brushless Direct Current. Unlike older motors that use carbon brushes to transfer electricity, a BLDC motor uses permanent magnets and an electronic solar pump controller.
- The Mechanism: The controller acts as the "brain," switching the internal magnetic fields to keep the motor spinning.
- The Benefit: Because no brushes are rubbing against each other, there is almost zero friction. This allows a DC solar pump to start pumping water even when the sun is low in the sky, such as at 7:00 AM or 5:00 PM.
What Is a Normal Solar Pump?
A “Normal” solar pump usually refers to a standard AC (Alternating Current) induction motor. These were the industry standard for years before BLDC technology became affordable.
- Working Process: Since solar panels produce DC power, a normal AC system requires a solar pump inverter to convert that energy into AC power.
- Features: These systems are often used for very large-scale solar irrigation pump needs where high horsepower (above 10 HP) is required. They are familiar to most local mechanics but are generally less efficient for smaller solar setups.
BLDC Solar Pump vs Normal Solar Pump: Key Differences
| Feature | Morca BLDC Solar Pump | Normal AC Solar Pump |
|---|---|---|
|
Energy Source
|
Direct DC (No conversion)
|
DC converted to AC (via Inverter)
|
|
Efficiency
|
High (Starts in low light)
|
Lower (Needs strong sun to start)
|
|
Maintenance
|
Extremely Low (No brushes)
|
Moderate (Requires periodic checks)
|
|
Service Life
|
Longer (Fewer moving parts)
|
Standard
|
|
Noise Level
|
Very Quiet
|
Moderate
|

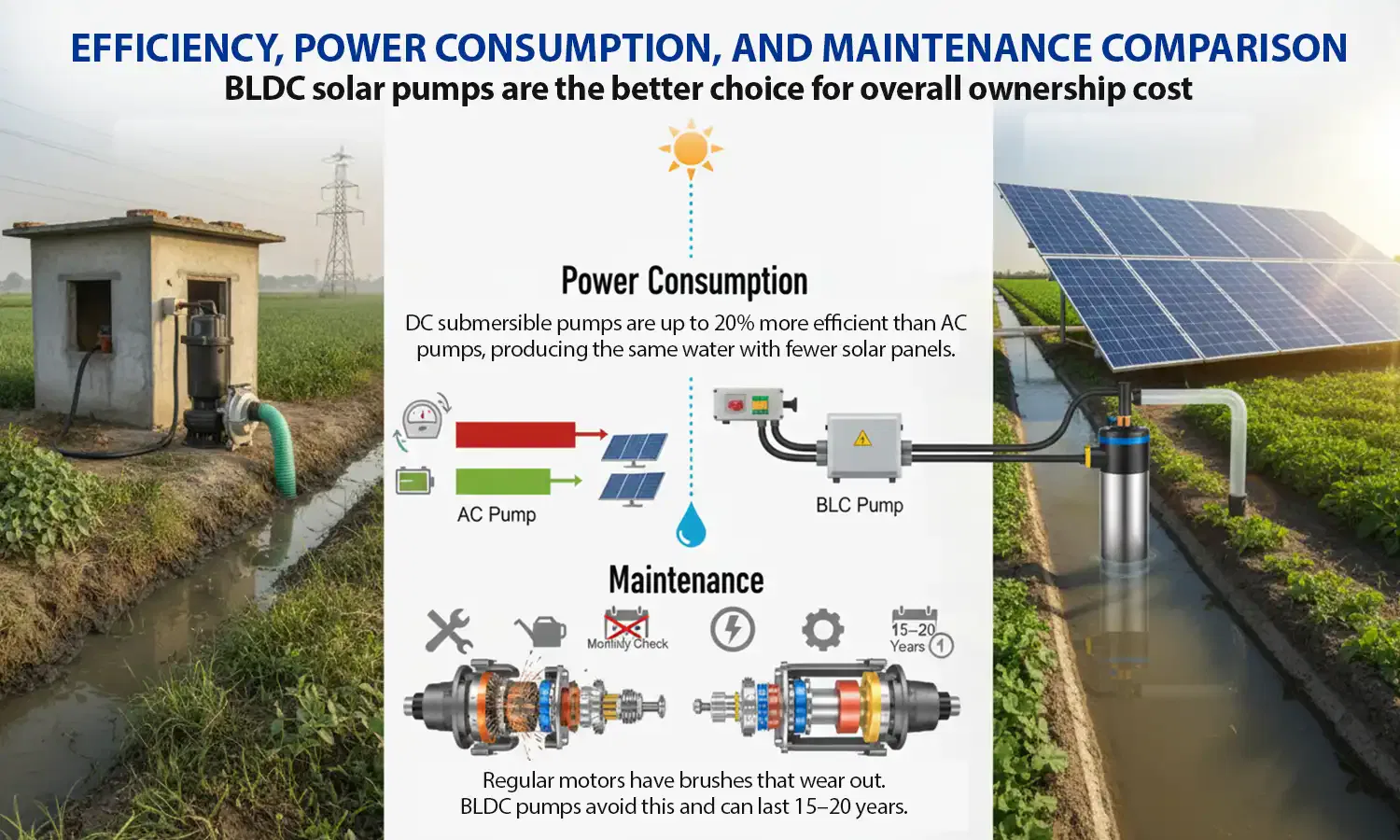

Efficiency, Power Consumption, and Maintenance
When it comes to the total cost of solar water pump ownership, the BLDC model is the clear winner for most users.
- Power Consumption: A DC submersible pump is up to 20% more efficient than an AC pump. This means you can get the same amount of water using fewer solar panels, which lowers your initial solar pump price.
- Maintenance: In a normal motor, brushes wear out and need replacing. A BLDC solar pump eliminates this. At Morca, our BLDC motors are made with high-grade copper and permanent magnets, designed to last 15-20 years.
Which Solar Pump Is Better for Farmers and Agriculture?
For most Indian farmers, the BLDC solar pump is a better investment.
- For Deep Borewells: If your well is 300 to 500 feet deep, a 3 hp solar water pump with BLDC technology provides the steady torque needed to lift water efficiently.
- For Drip Irrigation: Since a solar-powered irrigation pump needs to run for several hours, the energy savings of a DC system add up quickly.
FAQ's
For small to medium farms (up to 5 acres), a BLDC solar water pump is best due to its high efficiency and low maintenance. For very large industrial needs, an AC pump might be considered.
A “submersible pump” refers to where the pump is placed (underwater). “BLDC” refers to the type of motor inside it. You can have a solar submersible pump that uses either a BLDC motor or a normal AC motor.
It is often called a Permanent Magnet Synchronous Motor (PMSM) or simply a Brushless DC motor.
Morca’s systems vary by size. Common configurations include 48V, 72V, or 96V for DC systems, while AC systems typically run at 220V or 415V.
