How Do I Choose a Submersible Pump Size?
Buying a water pump is a lot like buying shoes. If you get a size too small, you won’t get enough water. If you get a size too big, you’ll waste money and energy. Whether you need a submersible water pump for your house or a solar irrigation pump for your crops, choosing the Right Submersible Pump Size doesn’t have to be complicated.
In 2026, with the advancement of solar motor pump technology and high-efficiency submersible motor designs, making the right choice is more critical than ever to ensure long-term performance and low running costs. So here’s how choosing the right submersible pump size is made easy by Morca’s guide.

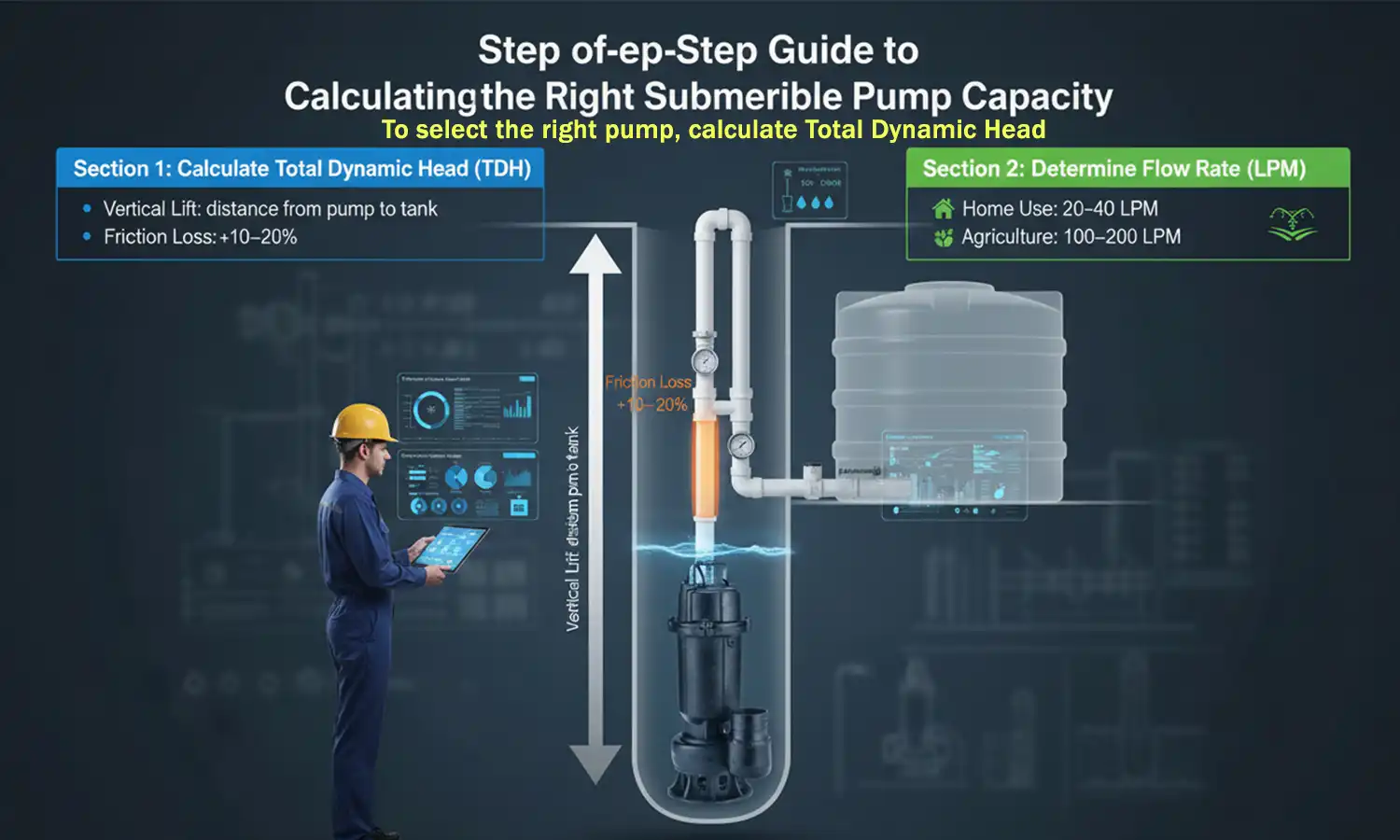

Step-by-Step Guide to Calculating the Right Submersible Pump Capacity
Choosing the Right Submersible Pump Size for your needs, you need to calculate the “Total Dynamic Head” and the required “Flow Rate.”
1. Calculate the Head (Vertical Lift + Friction): This is the total height the water needs to travel.
- Vertical Lift: Measure the distance from where the pump sits in the well to the top of your storage tank.
- Friction Loss: As water flows through pipes, it loses pressure. A standard rule is to add 10-20% extra to your vertical lift to account for this resistance.
2. Determine Flow Rate (LPM): This is how much water you need per minute.
- For Home Use: A submersible well pump delivering 20 to 40 Litres Per Minute (LPM) is standard.
- For Agriculture: A solar-powered irrigation system often requires 100 to 200 LPM to be effective.
How Water Source Type Impacts Submersible Pump Size Selection
The “where” is just as important as the “how much.” Your water source dictates the physical build of the submersible motor.
- Borewells: These are narrow. Most Indian households use a 4-inch wide borewell, requiring a "V4" submersible well pump.
- Open Wells or Ponds: Since space isn't an issue, you can use wider, high-discharge pumps.
- Basements or Sumps: If you are dealing with drainage or flat-surface water, a submersible sump pump is the correct choice as it is designed for high volume at low heights.
- Solar Sources: If you are off the grid, a solar-powered submersible pump or a dc submersible pump is ideal, as it is optimized to work with fluctuating power from the sun.
So the above information helps in choosing the Right Submersible Pump Size for your needs, and Morca helps. Check out Morca’s website to get the best solar-powered water pumps in India.

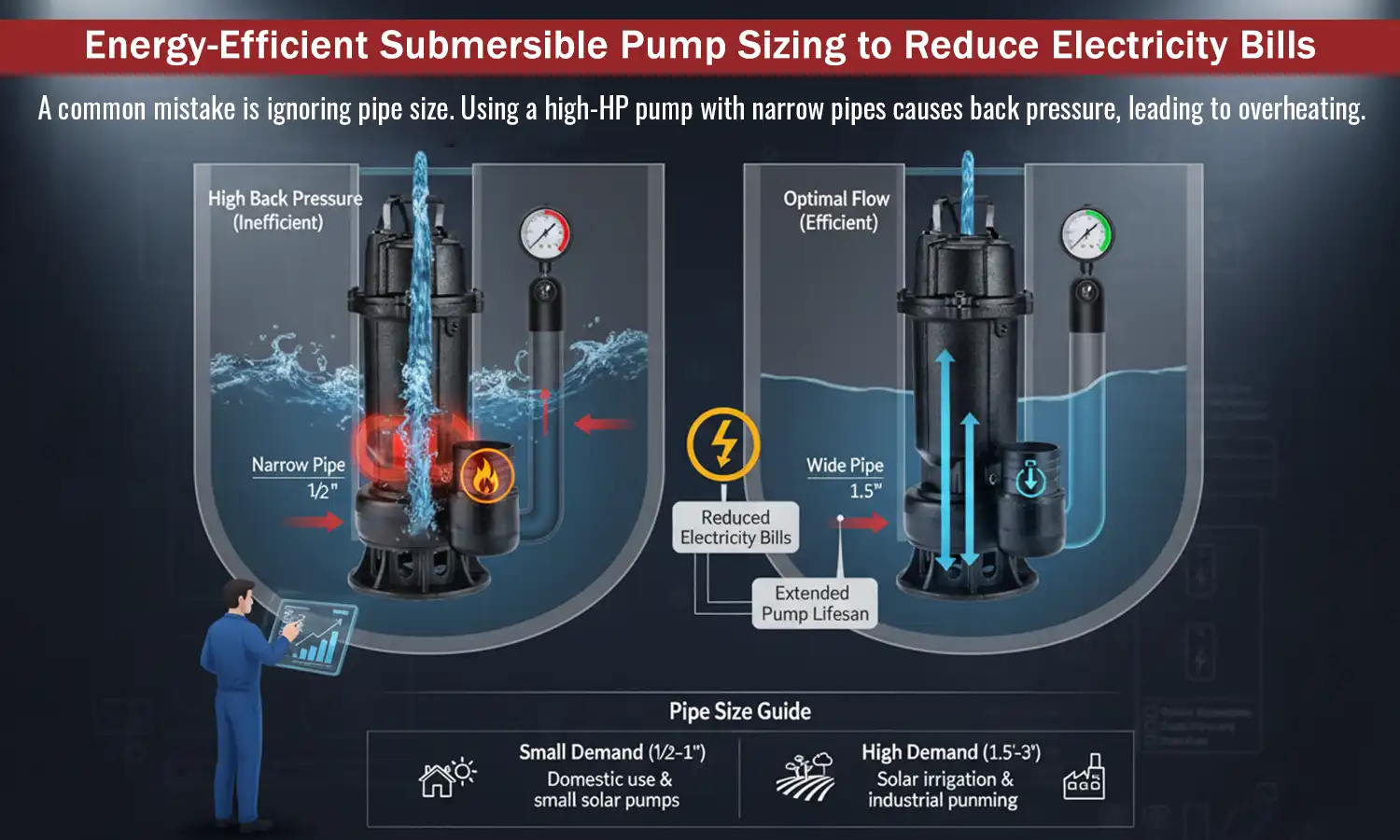

Matching Submersible Pump Size with Pipe Diameter and Water Demand
A common mistake in choosing the Right Submersible Pump Size is ignoring the pipes. If you install a high-HP submersible water pump but use narrow pipes, the motor will experience “back pressure,” leading to overheating and failure.
- Small Demand (1/2" to 1" pipes): Suitable for domestic use and small solar electric water pump setups.
- High Demand (1.5" to 3" pipes): Necessary for a solar irrigation pump or industrial solar pumping system to ensure the water actually reaches the destination without losing all its energy to friction.
Energy-Efficient Submersible Pump Sizing to Reduce Electricity Bills
In 2026, the smartest way to cut costs is to move toward a solar-powered pump system. By matching your pump size exactly to your needs, you prevent the “cycling” (turning on and off) that eats up electricity.
Using a solar-powered submersible pump allows you to bypass the rising costs of the traditional grid. These systems use solar motor pump technology that adjusts its speed based on sunlight, ensuring you get water for free for up to 20 years. At Morca, we focus on high-efficiency DC submersible pump models that provide maximum water discharge even during the early morning or late afternoon.
Submersible Pump Size Chart Explained: HP, Head, and Discharge
To make it even easier, refer to this quick sizing chart for common 2026 installations:
| Your Need | Recommended HP | Best Pump Type |
|---|---|---|
|
Small House
|
0.5 HP – 1 HP
|
Submersible water pump
|
|
Large Villa / Garden
|
1.5 HP
|
Solar submersible pump
|
|
Medium Farm
|
3 HP – 5 HP
|
Solar powered submersible pump
|
|
Deep Borewell (300ft+)
|
5 HP+
|
Solar submersible water pump
|
Conclusion
Choosing the Right Submersible Pump Size is the single most important step in securing a reliable and cost-effective water supply for your property. By accurately calculating your Total Dynamic Head and matching your flow requirements to the correct horsepower, you ensure that your submersible motor operates at peak efficiency without wasting energy.
Whether you are installing a solar-powered submersible pump for a remote farm or a dc submersible pump for a high-tech residential setup, Morca’s high-efficiency designs are engineered to take the guesswork out of the process. Don’t settle for a “one-size-fits-all” approach; investing a little time in choosing the right submersible pump size today will reward you with decades of uninterrupted service and significantly lower utility bills.
FAQs
They are usually sized by Horsepower (HP), starting from 0.5 HP for small homes up to 10 HP or more for large-scale solar irrigation pump projects.
The most common size in India is the V4 pump, designed to fit perfectly into a 4-inch wide borewell. For deeper, narrower wells, V3 pumps are also available.
You must calculate your daily water requirement. For example, a 3 HP solar-powered irrigation system can typically provide about 50,000 liters of water on a clear sunny day.
Always check the “Pumping Level”, this is the depth where the water level stays while the pump is running. Ensure your submersible motor is installed at least 10-20 feet below this level to avoid dry running.
