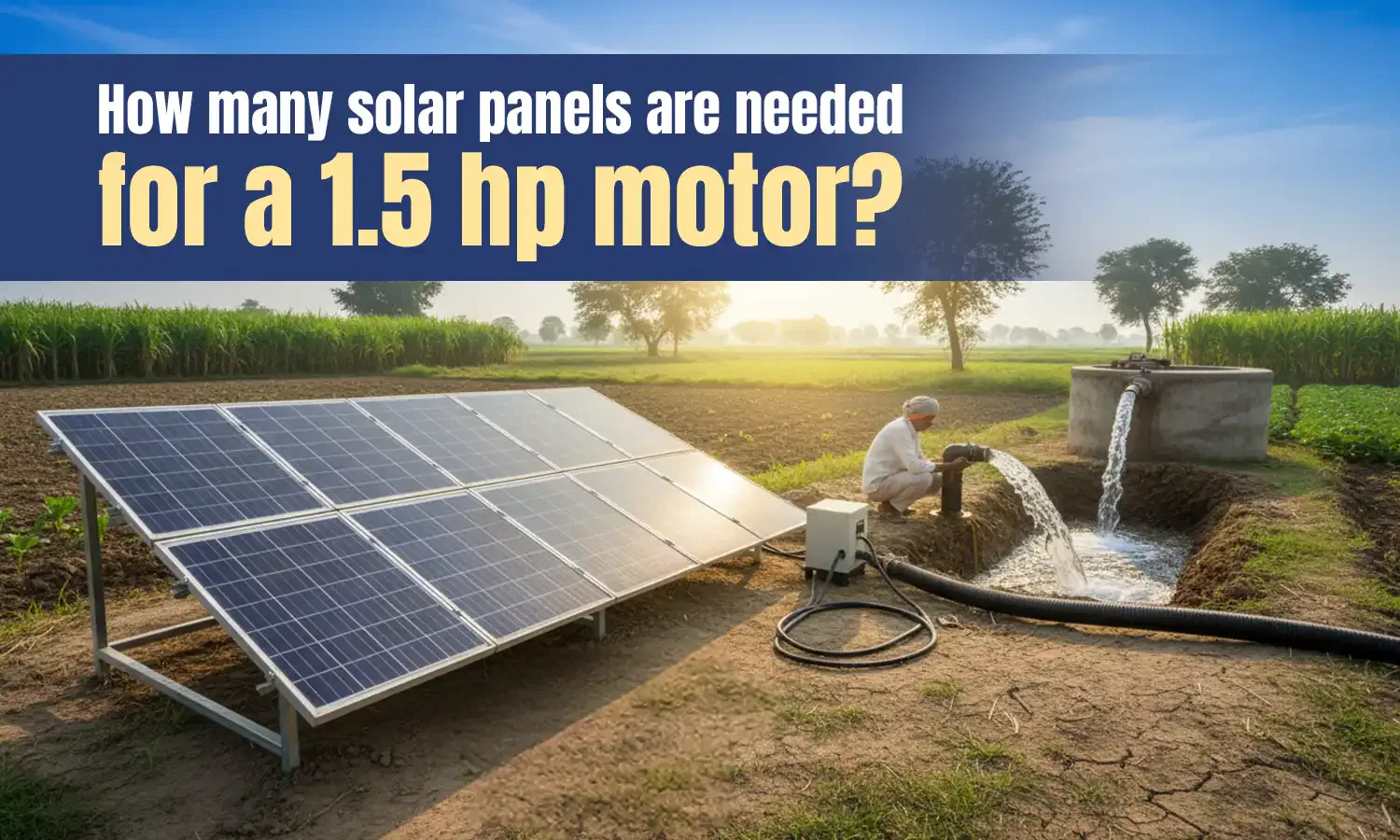

How many solar panels are needed for a 1.5 hp motor?

Introduction :

Determining exactly how many solar panels are needed for a 1.5 hp motor is one of the most common questions we receive at Morca. You may be setting up an off-grid solar system for a remote farm or a solar electric system for your house; matching your panel capacity to your motor size is critical for consistent water flow.
In this 2026 guide, we break down the technical requirements to ensure your solar energy system performs at peak efficiency.

Power Consumption of a 1.5 HP Motor in Watts

To calculate how many solar panels for your home or farm are required, we first convert Horsepower (HP) to Watts.
  • The Math: 1HP = 746 Watts.
  • 1.5 HP Requirement: 1.5 times 746 = 1,119 Watts.
However, this is the “mechanical” output. Due to electrical losses and the startup surge required by photovoltaic panels, you cannot simply install 1,119W of solar. You need a buffer to ensure the motor starts smoothly, even during early morning hours.
While “Horsepower” tells you the mechanical strength of the motor, we measure its electrical pull in Watts. A 1.5 HP motor is a medium-duty powerhouse, perfectly suited for residential water tanks or small-scale solar irrigation. It requires a steady flow of energy to overcome the initial “startup” surge and maintain a consistent water lift.
At Morca, we ensure your solar energy system provides enough overhead to keep this motor running smoothly even during fluctuating sunlight. So, calculating how many solar panels are needed for a 1.5 hp motor is totally based on your requirements.
solar panels are needed for a 1.5 hp motor

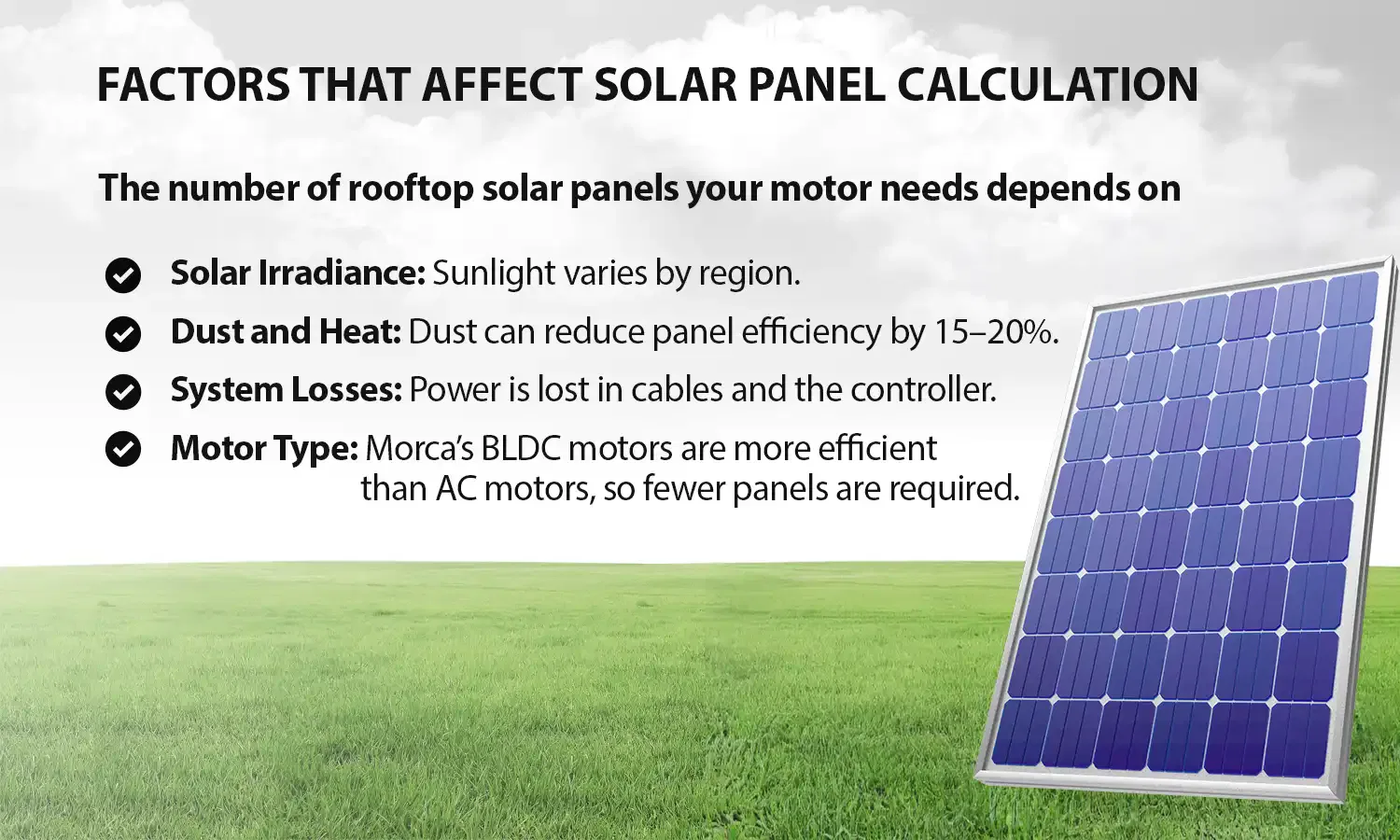

Factors That Affect Solar Panel Calculation

Several variables determine the final count of roof solar panels for your motor:
  • Solar Irradiance: Different regions receive varying amounts of sunlight.
  • Dust and Heat: Dust on photovoltaic panels can reduce efficiency by 15-20%.
  • System Efficiency: Every solar PV system loses some power through cables and the solar pump controller.
  • Motor Technology: Morca’s BLDC motors are much more efficient than standard AC motors, meaning they require fewer panels to achieve the same water output.

Solar Panel Capacity Required for a 1.5 HP Motor

For a Morca 1.5 HP system, we generally recommend a solar array that is 1.2 to 1.5 times the motor’s wattage.

Morca Factual Standard: For a 1.5 HP motor (1,119W), you should aim for a total solar energy capacity of 1,800W to 2,000W.

How many solar panels are needed for a 1.5 hp motor?

  • If using 335W Poly panels: You will need 6 panels.
  • If using 540W Mono-PERC panels: You will need 4 panels.
solar panels are needed for a 1.5 hp motor

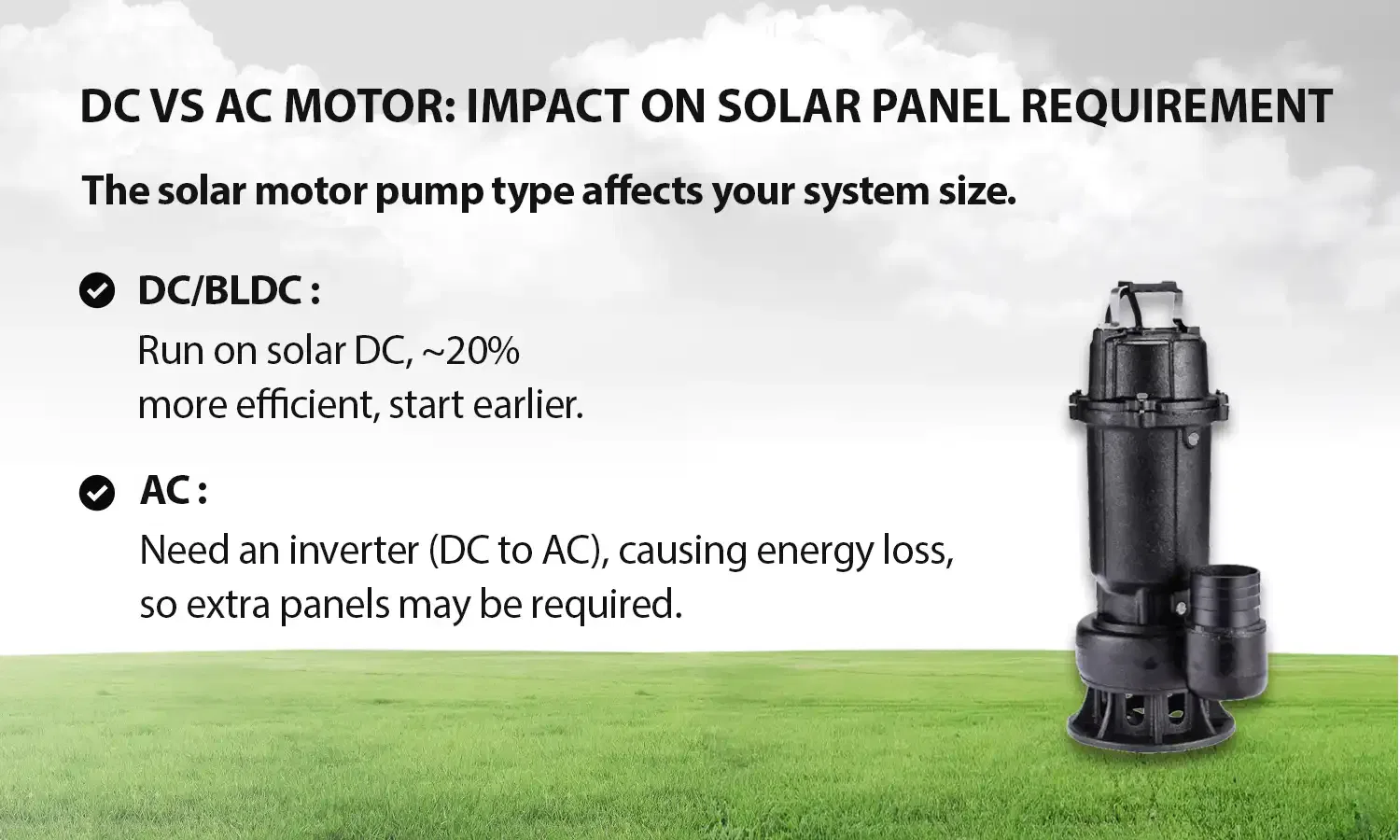

DC vs AC Motor: Impact on Solar Panel Requirement

The type of solar motor pump you use significantly changes your solar power system needs.
  • DC/BLDC Motors: These run directly on the DC power from solar panels for house use. They are 20% more efficient and start pumping earlier in the day.
  • AC Motors: These require a solar pump inverter to convert DC to AC. This conversion leads to "energy loss," meaning you might need 1 or 2 extra panels to get the same water flow as a DC system.

Complete Solar Pump System Components for a 1.5 HP Motor

A 1.5 HP Morca setup is a complete solar installation kit that includes:
1. Solar Panels: High-wattage Mono-PERC modules.
2. Controller: An MPPT-based solar pump controller with dry-run protection.
3. 1.5 HP Motor: Specifically designed for solar power use.
4. Structure: A hot-dipped GI stand to hold your solar panels for home or farm safely.

FAQ's

To ensure reliable operation, you need between 1,800W and 2,000W of solar capacity. This usually translates to 4 high-efficiency 540W panels or 6 standard 335W panels.

For a 1.5 HP Morca submersible pump, the maximum “Head” or height is typically between 200 and 250 feet (60–75 meters).

It provides zero running costs, low maintenance, and energy independence. You get a solar electric system that pays for itself within 3 years by eliminating electricity bills.

A 1.5 HP system can comfortably irrigate 1 to 2 acres of land, depending on the crop type and the efficiency of your solar-powered drip irrigation system.

Standard pumps are for freshwater. However, Morca offers specialized SS-316 grade pumps for corrosive environments. Always consult our team before using a solar motor pump in saltwater.
