Solar Pump Components Explained (Panels, Controller, Motor)
By Morca Pumps
Introduction :
Understanding the Solar Pump Components is the first step toward achieving energy independence for your water needs. A high-quality solar-powered water pump
The system is not just a collection of parts; it is a synchronized ecosystem designed to perform under the harsh Indian sun. At Morca, we focus on engineering these solar-powered pump parts to work in perfect harmony, ensuring you get maximum water flow with minimal maintenance.
Overview of Solar Pump System and Its Main Components
A complete solar water pumping system consists of three core units that handle power generation, management, and mechanical action. These are:1. Solar Photovoltaic (PV) Panels: The power generators.
2. Solar Pump Controller: The brain that manages energy flow.
3. Solar Motor Pump: The heart that moves the water.
When you invest in a Morca system, each of these solar pump components is selected based on your specific water source. It may even be a 500-foot deep borewell or a shallow pond. Morca covers you with our solar water pumps.

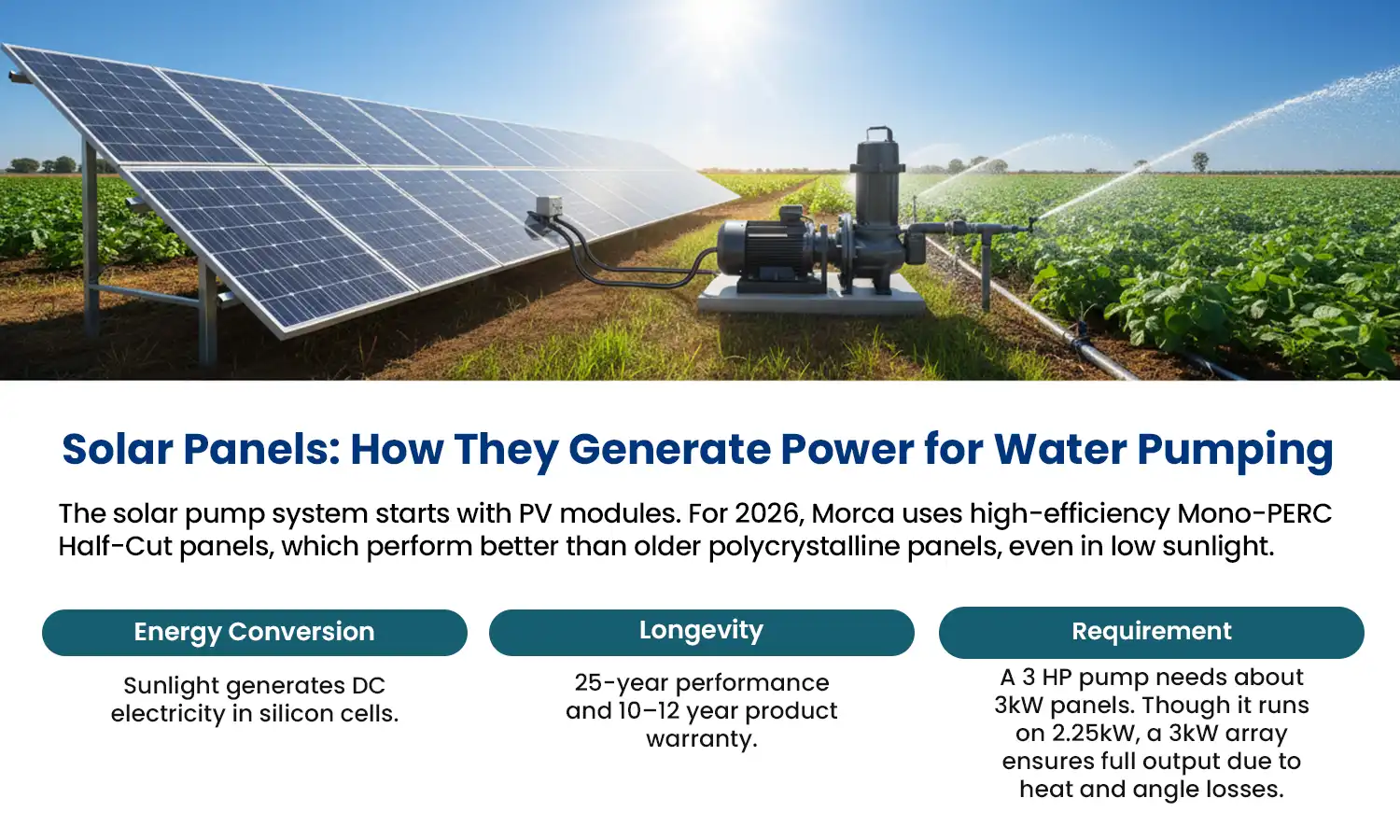

Solar Panels: How They Generate Power for Water Pumping
The solar panel pump setup starts with PV modules. For 2026, Morca uses high-efficiency Mono-PERC (Passivated Emitter and Rear Cell) Half-Cut panels in its solar pump components.
These panels are the supercharged and more efficient version of the older polycrystalline versions because they generate more power even during cloudy or dull mornings, with little sunlight.
- Energy Conversion: Sunlight hits the silicon cells, creating direct current (DC) electricity.
- Longevity: Our panels come with a 25-year performance warranty and a 10 to 12-year product warranty.
- Requirement: For a 3 HP solar irrigation pump, you typically need about 3,000 Watts (3kW) of panel capacity to ensure the pump runs at its full potential. While a 3 HP pump roughly needs about 2.25kW to run, solar panels rarely produce their rated wattage (due to heat and angle), making a 3kW or slightly higher array necessary for consistent “full potential” performance.
Solar Pump Controller: Functions, Features, and Protection System
The solar pump controller (also known as a PCU or Drive) is what makes the system smart one of the important solar pump components. Without it, your motor could burn out during a sudden cloud cover or if the water level drops.
- MPPT Technology: Our controllers use Maximum Power Point Tracking to squeeze up to 30% more energy from the panels, which makes this one of the most important solar pump components.
- Safety Guards: Every Morca solar water pump controller includes Dry Run Protection. If your well runs out of water, the controller senses the drop in load and shuts the motor off immediately to prevent damage.
- Price Insight: A standalone 3 HP solar pump controller from Morca typically costs between ₹22,000 and ₹28,000, reflecting its advanced protection circuits.

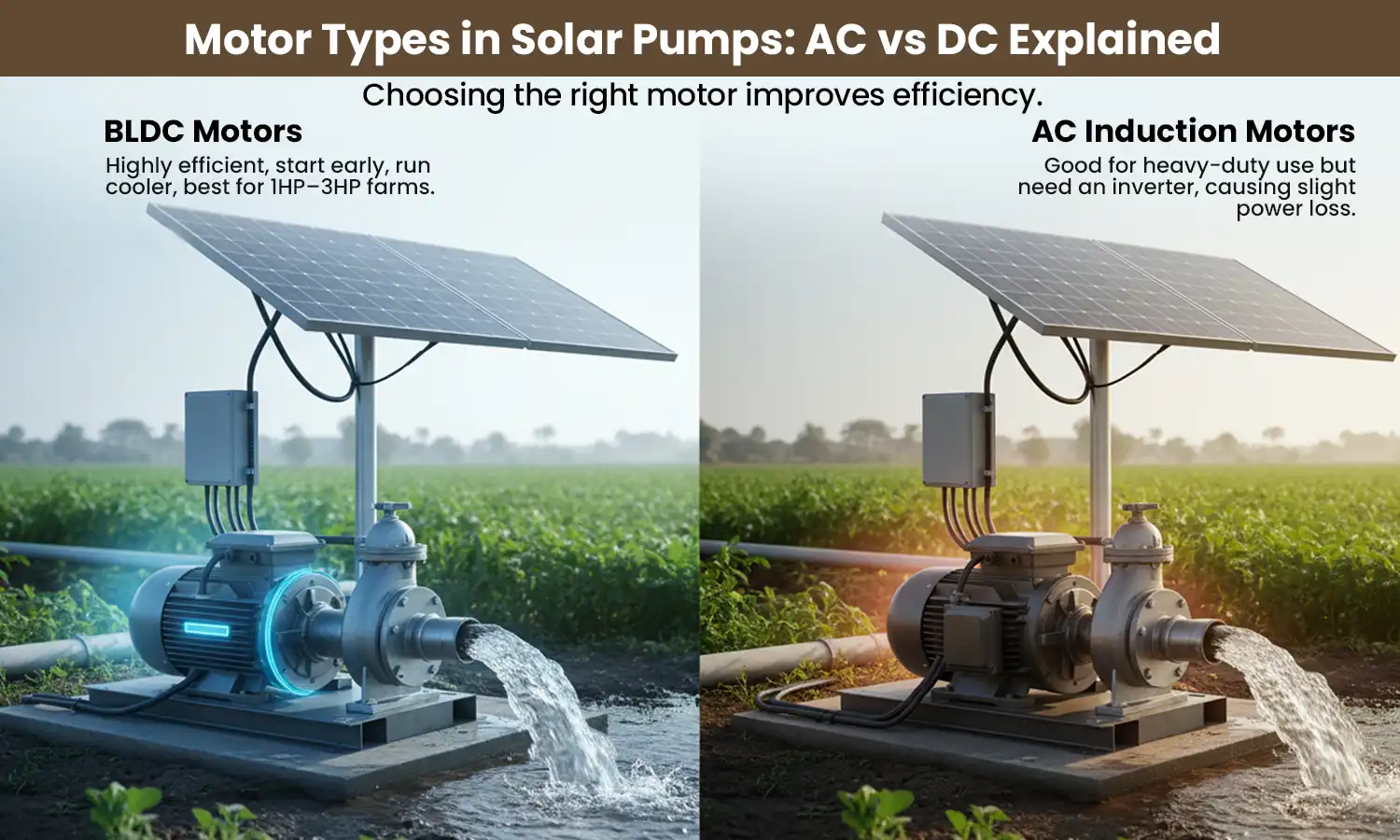

Motor Types in Solar Pumps: AC vs DC Explained
Choosing the right motor for your solar pump components is vital for efficiency.
- DC Brushless (BLDC) Motors: These are the most modern and efficient when it comes to some of the most important solar pump components. A DC submersible pump using BLDC technology starts earlier in the morning and stays cooler. It is the best choice for small to medium farms (1HP to 3HP).
- AC Induction Motors: These are reliable for very large, heavy-duty applications. However, they require a solar pump inverter to convert DC power from panels into AC, which leads to slight energy losses.
How Panels, Controller, and Motor Work Together
The synergy between these solar pump components is simple: the panels provide the “fuel,” the controller acts as the “accelerator,” and the motor provides the “drive.” For example, if you have a 2-acre farm with a 150-foot borewell, a Morca 1 HP solar submersible pump is ideal.
Choosing the Right Fit for Your Land
- For Small Gardens/Homes: A solar water pump for a home (usually 1 HP) is perfect for filling overhead tanks.
- For 3-5 Acre Farms: A 3 hp solar water pump provides enough volume for consistent crop watering.
- For Deep Borewells: If your water table is below 300 feet, always opt for a high-head solar-powered submersible pump with at least 3 HP to 5 HP to ensure the water actually reaches the surface. These are best suited for large-scale agriculture and even factory uses.
FAQ
The main solar pump components are the PV panels, the MPPT controller, and the submersible or surface motor pump. Additional parts include the GI mounting structure and DC safety wiring.
A standard system includes solar modules, a structure to hold them at the correct angle (facing South in India), and DC cables to connect them to the pump controller.
It takes the variable DC power from the panels and stabilizes it. It also tracks the Maximum Power Point to ensure the pump gets the most electricity possible throughout the day.
They can be both. DC solar pump systems are more efficient for most farmers, while AC pumps are often used when converting an existing electric pump to solar.
