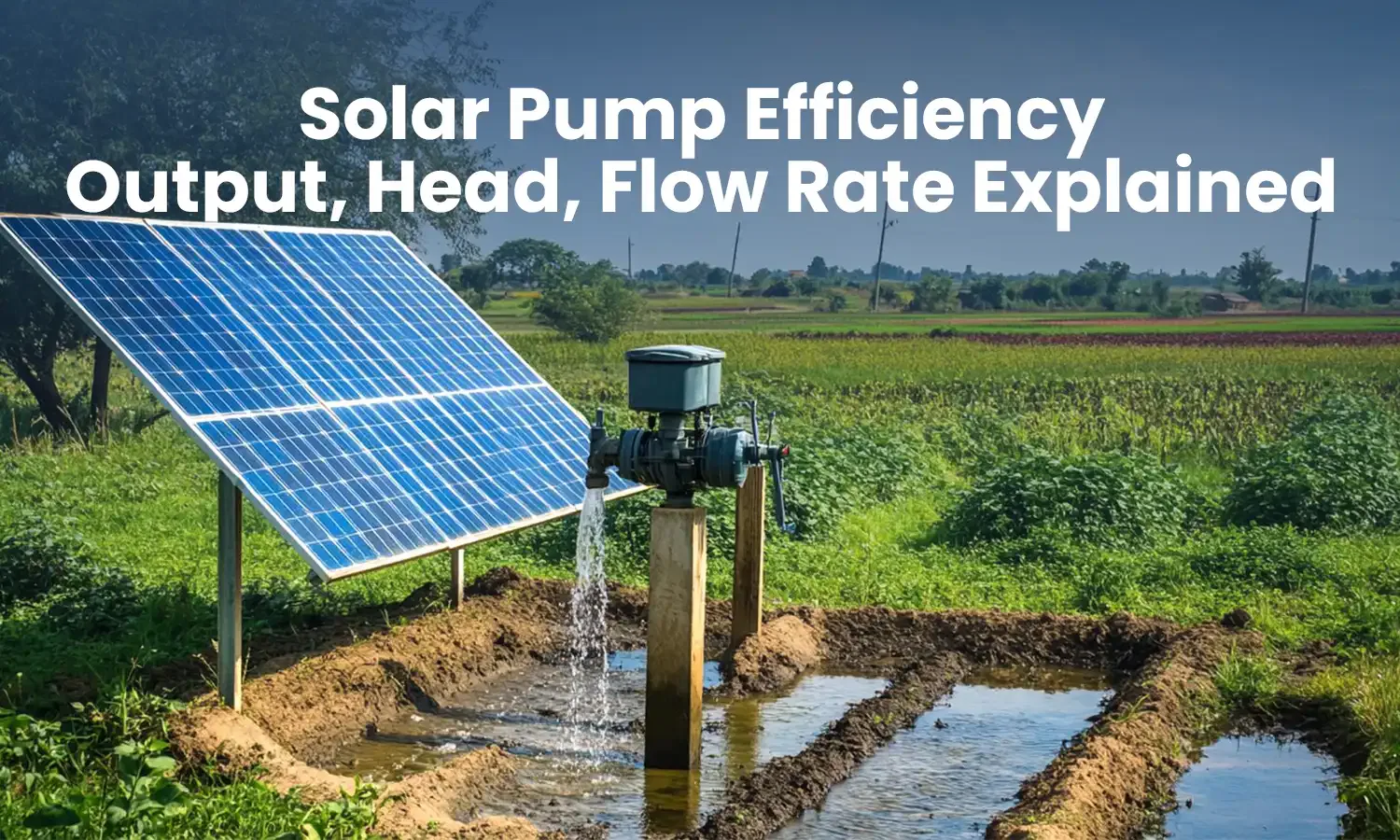

Solar Pump Efficiency: Output, Head, Flow Rate Explained
Introduction :
When you invest in a solar water pumping system, you aren’t just buying hardware; you are buying performance. Understanding Solar Pump Efficiency ensures that every ray of sunlight hitting your panels is converted into the maximum amount of water for your crops or home.
At Morca, we design our systems with a “System-First” approach. This means we don’t just look at the motor, but how the panels, controller, and pump work together to overcome the resistance of your specific well.
What Is Solar Pump Efficiency and Why Is It Important
In simple terms, the solar pump efficiency is the ratio of the energy you get (water flow) to the energy you put in (sunlight). A high-efficiency solar-powered pump saves you money because it can do more work with fewer solar panels.
For example, Morca’s 2026 BLDC solar motor pump models are significantly more efficient than traditional AC pumps. They start pumping earlier in the morning and continue later into the evening, providing up to 20% more water over a full day.

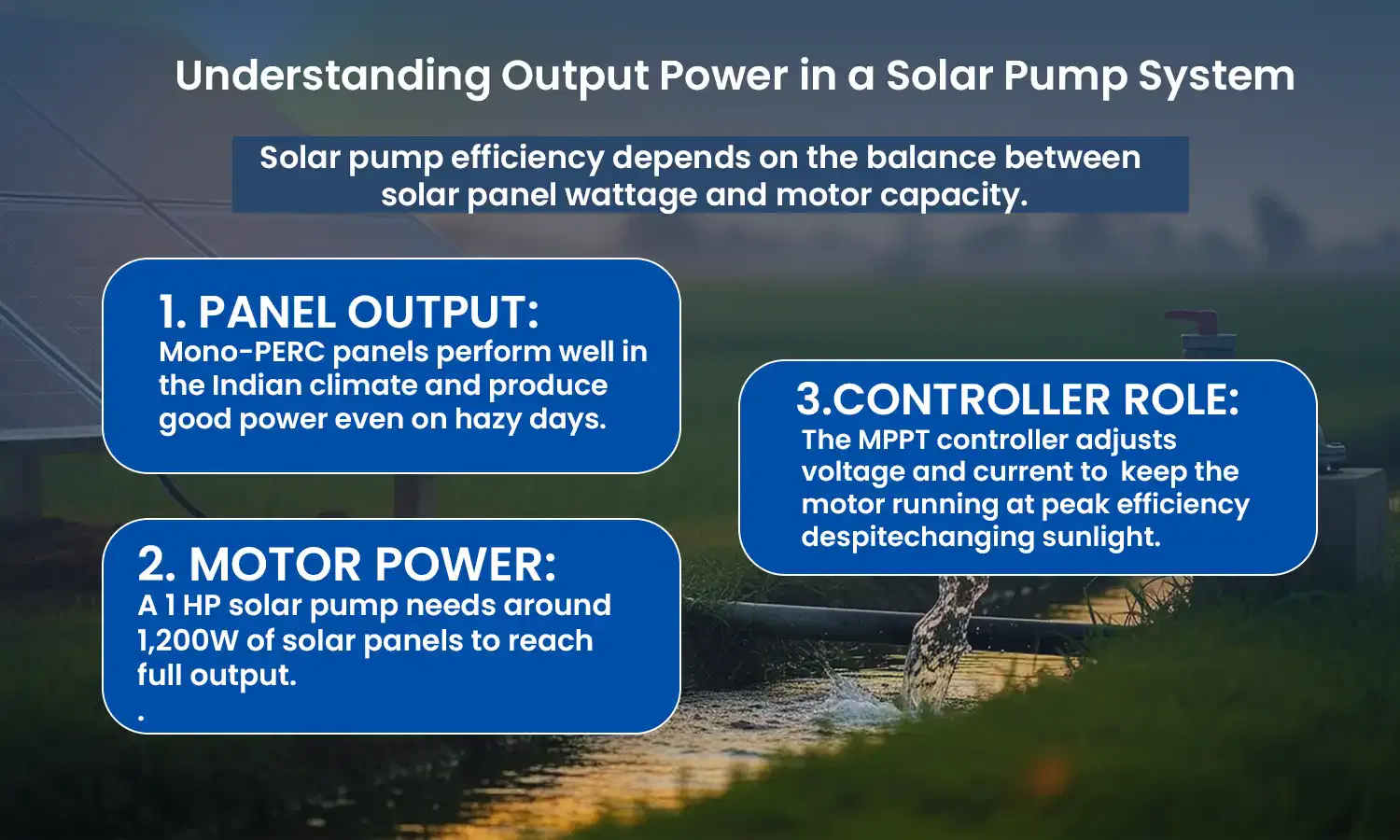

Understanding Output Power in a Solar Pump System
The output power or the solar pump efficiency of your system depends on the synergy between the solar panel’s wattage and the motor’s capability.
- Panel Output: Our Mono-PERC panels are designed for the Indian climate, providing high output even on hazy days.
- Motor Power: A 1 HP solar pump for agriculture requires roughly 1,200 Watts of panel capacity to reach its full rated output.
- The Controller's Role: The solar water pump controller uses MPPT (Maximum Power Point Tracking) to adjust the voltage and current, ensuring the motor stays at its peak efficiency point regardless of fluctuating sunlight, to ensure the best of your solar pump efficiency.
What Is Pump Head? Total Dynamic Head (TDH) Explained
“Head” is the total height the pump needs to lift the water. However, it’s not just the depth of your well. To find the Total Dynamic Head, you must consider:
1. Vertical Lift: The distance from the water level in the well to the highest point of your tank or field.
2. Friction Loss: As water moves through pipes and elbows, it loses energy.
3. Pressure Head: If you are using a solar-powered pressure pump for a sprinkler or drip system, you must add the pressure requirement (PSI) to your total head calculation.
4. Morca Calculation Tip: Always add 10-15% to your vertical depth to account for friction. If your borewell is 300 feet deep, select a pump rated for at least 340 feet of head for your solar pump efficiency.

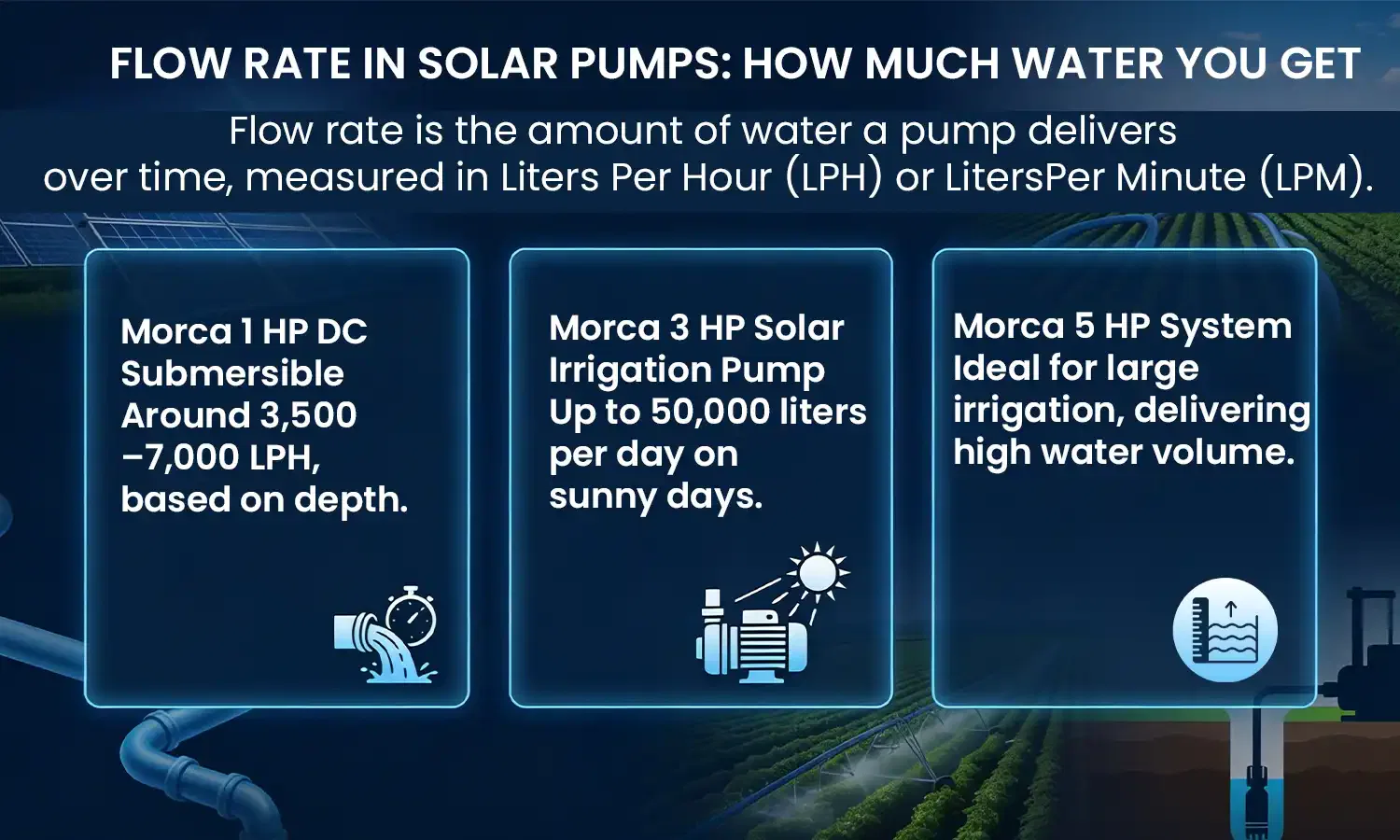

Flow Rate in Solar Pumps: How Much Water You Get
The flow rate is the volume of water delivered over time, usually measured in Liters Per Hour (LPH) or Liters Per Minute (LPM).
- Morca 1 HP DC Submersible: Delivers approximately 3,500 to 7,000 LPH depending on the depth.
- Morca 3 HP Solar Irrigation Pump: Can provide up to 50,000 liters of water on a clear sunny day.
- Morca 5 HP System: Designed for large-scale solar irrigation systems, delivering massive volumes for flood or drip irrigation.
How Output, Head, and Flow Rate Work Together
These three factors exist in a balance. If the “Head” (depth) increases, the “Flow Rate” (water volume) will naturally decrease.
| Morca Model | Horsepower | Rated Head (Max) | Avg. Daily Flow (Litres) |
|---|---|---|---|
|
Surface BLDC |
1 HP (750W)
|
16 Meters
|
~16,000 LPH
|
|
Submersible DC
|
1 HP (750W)
|
60 Meters
|
~30,000 – 45,000 LPH
|
|
Submersible DC
|
3 HP (2200W)
|
120 Meters
|
~50,000 – 65,000 LPH
|
Choosing a solar electric water pump with the right balance ensures your motor doesn’t strain and your crops never go thirsty. These all make sure of your solar pump efficiency.
FAQ's
The total system of the solar pump efficiency typically ranges from 60% to 80% for high-quality models. Morca uses BLDC motors and MPPT controllers to stay at the top end of this range.
For a solar submersible pump, a motor efficiency of above 75% is considered excellent. This ensures minimal energy is lost as heat.
You can check efficiency by comparing the actual water discharge (Liters Per Minute) against the power being produced by your panels (shown on your solar pump controller display). If the flow is lower than the rated chart for that power level, it may be time for a maintenance check.
