 Solar Pump for Deep Borewells: Selection Guide
Introduction :
Extracting water from 300 to 500 feet below the ground requires more than just a standard pump; it requires a specialized Solar Pump for Deep Borewells engineered for high-head lift and efficiency. As we move into 2026, Morca’s advanced solar motor pump technology has become the go-to solution for farmers and homeowners looking to escape the cycle of high electricity bills and power cuts.
In this guide, we break down how to choose the right system to ensure your water flows as long as the sun is shining.
Understanding Deep Borewell Solar Pump Systems and How They Work
A solar pumping system for deep wells consists of three primary parts: the solar submersible pump, the solar pump controller, and high-wattage PV panels.
Unlike surface pumps, a solar-powered submersible pump is lowered directly into the borewell. The panels capture sunlight and convert it into DC electricity. This power is managed by the solar pump inverter (or controller), which regulates the voltage to drive the motor. Morca’s 2026 models utilize BLDC (Brushless DC) technology, making it the best solar pump for deep borewells, which is 15-20% more efficient than traditional AC motors, allowing the pump to start even in low-light morning hours.

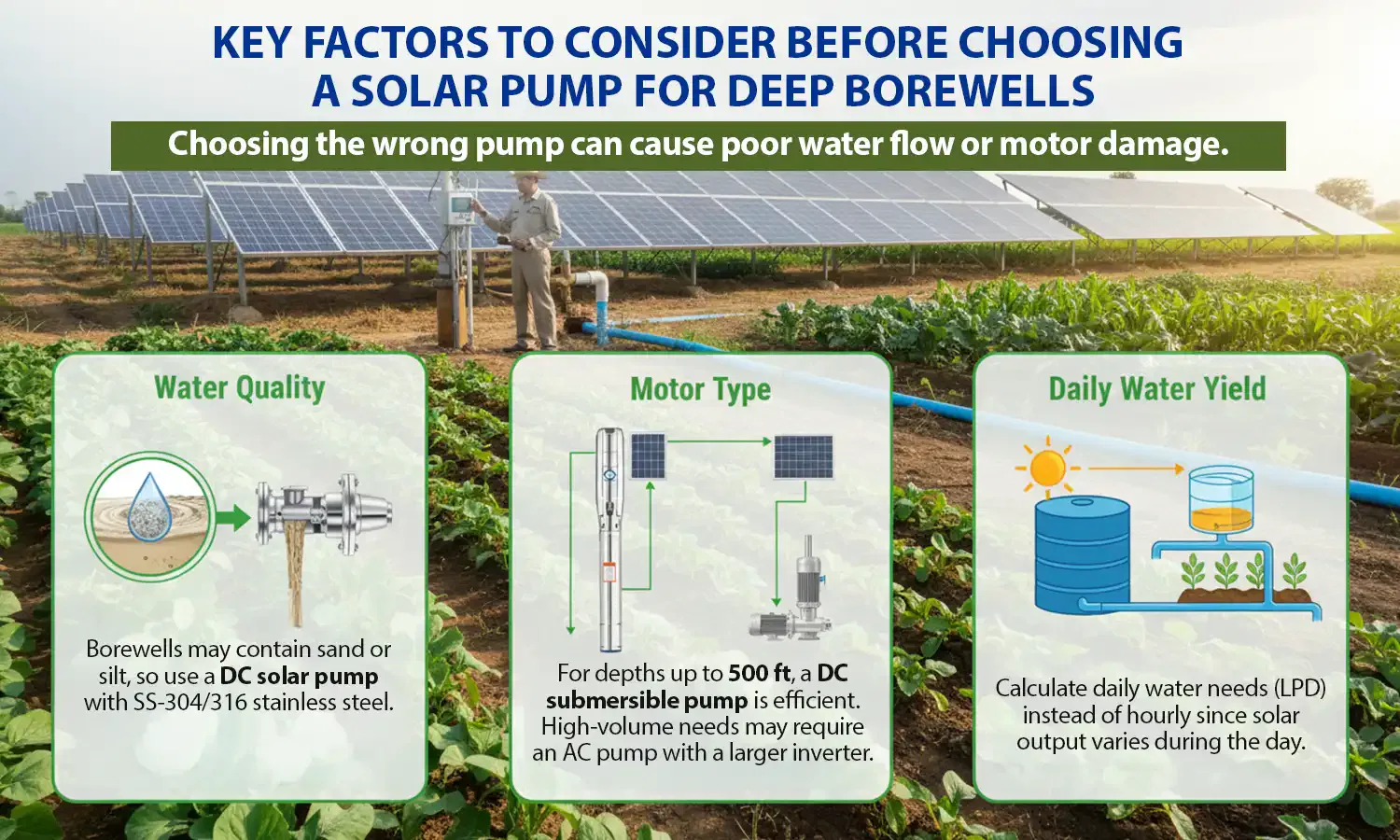

Key Factors to Consider Before Choosing a Solar Pump for Deep Borewells
Selecting the wrong pump can lead to poor water flow or motor burnout. Consider these Morca-certified factors for the best solar pump for deep borewells:
- Water Quality: Deep borewells can sometimes contain silt or sand. Ensure your dc solar pump features stainless steel (SS-304/316) construction to prevent erosion.
- Motor Type (AC vs. DC): For depths up to 500ft, a DC submersible pump is often more efficient. For extremely high-volume industrial needs, an AC system with a larger solar pump inverter may be required.
- Daily Yield: Calculate how many liters you need per day (LPD) rather than per hour, as solar output varies throughout the day.
Calculating Borewell Depth, Water Table Level, and Required Pump Head
The “Head” is the most critical metric for any solar submersible water pump.
1. Static Water Level: The depth from the ground to the water surface when the pump is off.
2. Dynamic Water Level: The depth once the pump is running and the level drops.
3.Total Dynamic Head (TDH): This is the vertical lift + friction loss in the pipes.
Morca Pro-Tip: If your borewell is 400 feet deep, choose a solar pump for agriculture with a “Max Head” of at least 450-500 feet to account for seasonal water table drops.

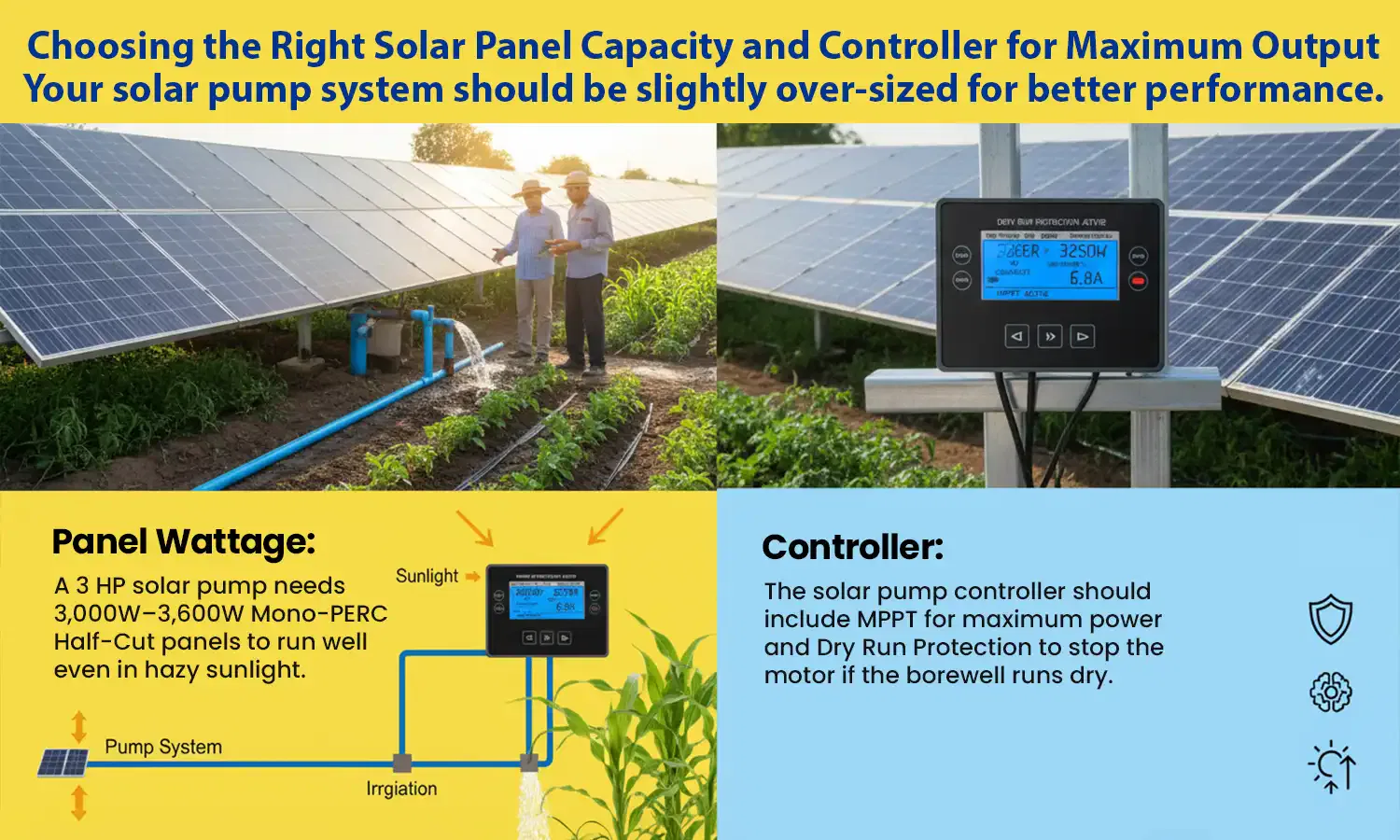

Choosing the Right Solar Panel Capacity and Controller for Maximum Output
Your solar panel pump system must be “over-sized” to ensure performance.
- Panel Wattage: For a 3 HP solar irrigation pump, Morca recommends at least 3,000W to 3,600W of Mono-PERC Half-Cut panels. This ensures the pump runs at full speed even during hazy 2026 afternoons.
- The Controller: The solar pump controller is the brain. It must feature MPPT (Maximum Power Point Tracking) to squeeze every watt out of the panels and include "Dry Run Protection" to shut the motor off if the borewell runs dry.
Installation Tips, Maintenance Guide, and Cost of Solar Pump for Deep Borewells
- Installation: Use 2.5 sq mm UV-protected cables to minimize power loss. Ensure the solar pump installation includes a sturdy GI structure tilted at the correct angle for your latitude.
- Maintenance: Clean the solar panel pump surface bi-weekly. Dust can reduce output by 20%.
- 2026 Pricing: A complete Morca solar pump for deep borewells (3 HP kit) typically ranges from ₹1,40,000 to ₹1,85,000 before any government subsidies.
FAQ's
Standard Morca solar-powered submersible pump systems can easily pull water from 500 feet (150 meters). Higher-stage pumps can reach even deeper if paired with the right controller.
Not necessarily. Most users prefer to pump water into an elevated storage tank during the day. This “water storage” is 40% cheaper than using a battery bank.
A solar submersible pump is required. Specifically, a multi-stage centrifugal pump with a dc solar pump motor is best for deep, narrow borewells.
They offer zero running costs, 25 years of energy independence, and reliability in areas where the grid is unstable or unavailable.
