What Is the Power of a Solar Pump?
Water supply issues affect everyone—whether you’re a farmer far from the grid or a homeowner relying on a borewell. Rising electricity bills, fluctuating power availability, and inefficient pumps all add stress. A solar pump can change that by harnessing sunlight to deliver reliable water with minimal cost. Morca’s solar water pumps brings solutions for agriculture, industry, and homes, simple, efficient, and built for long-term reliability.
Understanding the Basics: How a Solar Pump Works
A solar pump uses panels to capture sunlight and convert it into electricity. That electricity then drives either a surface pump or a submersible unit to lift and move water. When you choose a solar powered water pump, you eliminate reliance on grid power or diesel.
For deeper water sources, a solar submersible pump is installed inside the bore, while for shallower sources, a surface pump works well. In Morca’s portfolio, you’ll also find a dc solar pump option which runs directly off the DC output from panels — no inverter needed.
Morca describes its solar power water pumping system as comprising solar panels, a controller (often with MPPT), and a pump whose capacity (head & flow) matches the source.
Because the system is designed for sunlight, it keeps working during grid failures — a major advantage for rural and remote users.

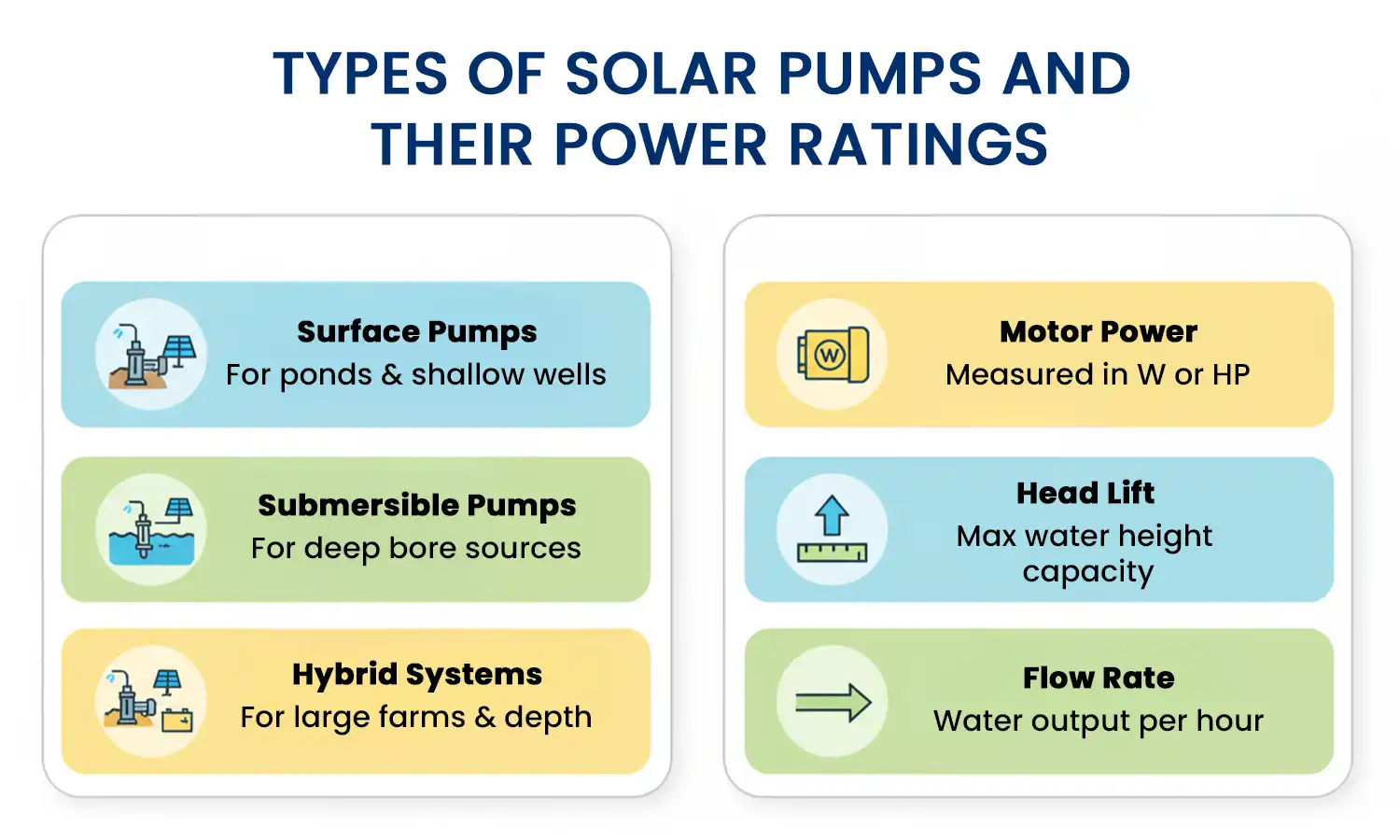

Types of Solar Pumps and Their Power Ratings
When choosing a solar pump, you’ll find these types:
- Surface solar pump: Suitable for ponds, open wells, and shallow sources. Morca’s “Mono Block” series uses BLDC motors of 600 W to 750 W, lifts up to 14-16 m with flows around 15,000-16,000 L/hr.
- Deep-well / submersible solar pump: For boreholes and deeper sources, Morca produces DC submersible pumps. Morca’s solar powered submersible pumps list systems with motor capacity from 650 W to 1500 W, head lift 10-26 m, flow 3,500-7,000 L/hr.
- Hybrid or larger farm systems: Bigger HP ratings (e.g., 3 HP/4 HP) for extended reach; Morca lists packages of 1 HP to 4 HP for 150-550 feet depth.
In each case, the “power” of the solar pump is indicated by:
- Motor rating (W or HP)
- Maximum head (how high it can lift water)
- Flow rate (litres per hour)
- Panel size (implicitly) and matching controller
When someone asks, “What is the power of a solar pump?”, they’re really asking: “Will it lift water from my depth? Will it deliver enough flow?” So you match these specs to your source.
Calculating Solar Pump Power Requirements
To get the right solar pump, you’ll need to consider:
1. Water depth (head) – How far you need to lift. Deeper wells need higher head capacity.
2. Required flow rate – How many litres per hour/day you need (for irrigation, household, livestock).
3. Sunlight hours – The Number of peak sun hours in your area affects panel size and output.
4. Motor & pump efficiency – A good brand like Morca uses high-efficiency motors (e.g., BLDC) to maximize output for a given panel input. (Morca Pumps)
Example: If your bore is 20 m deep and you need 5,000 L/hr for irrigation, you’d pick a pump with a suited head (≥20 m), motor capacity of maybe 1 HP+ (≈750 W+), and ensure your panel area supports the output. Then the solar system sizing follows. Morca’s spec pages highlight those head and flow values so you can pick accordingly.
By doing this calculation, you avoid undersizing (pump fails) or oversizing (wasted cost). Using a solar pumping system from Morca means the specs are clear and matched.

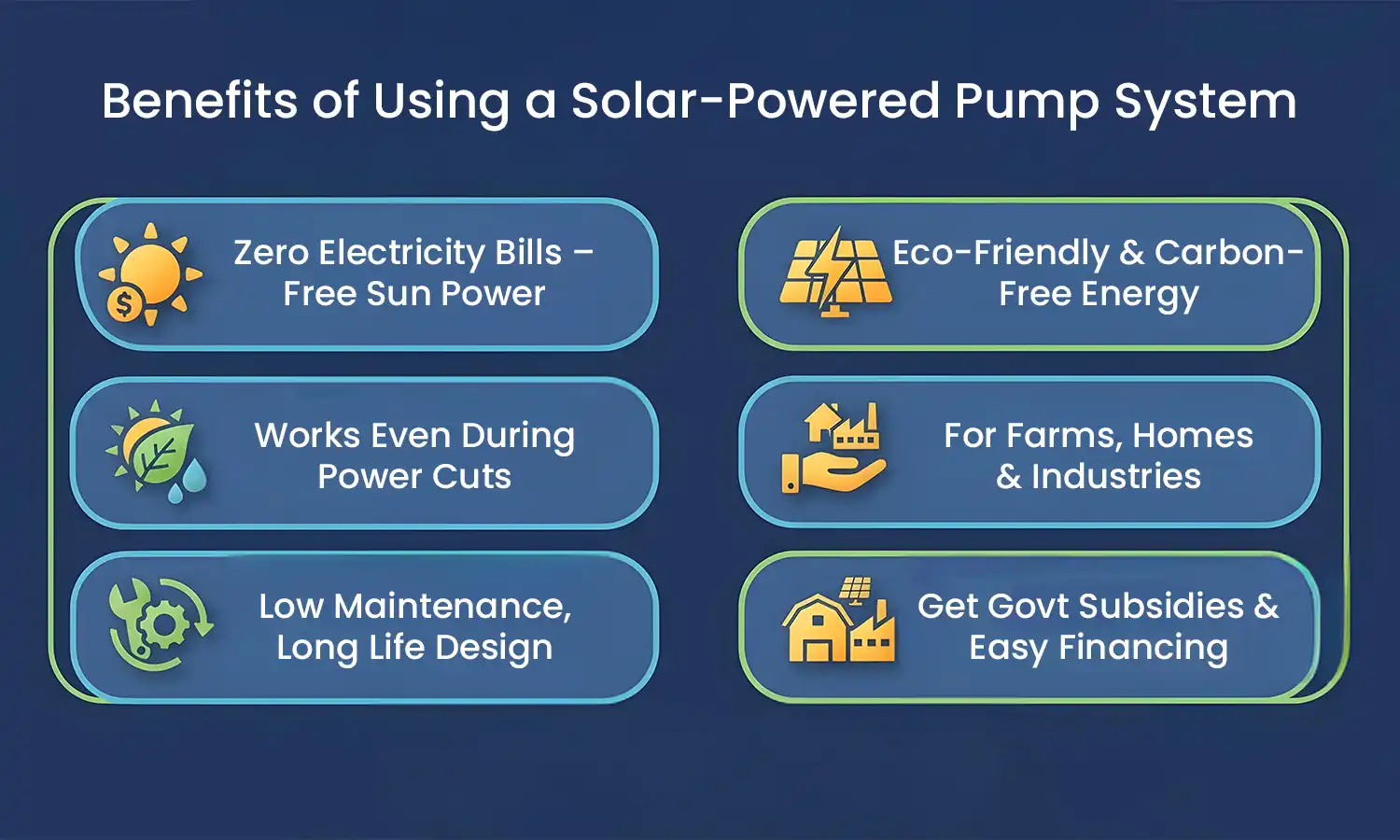

Benefits of Using a Solar-Powered Pump System
When you choose a solar-powered pump, you’re selecting long-term benefits:
- Zero grid electricity bills: After installation, your power source is free sunlight.
- Runs during power cuts: Ideal for remote farms or homes where the grid is unreliable.
- Low maintenance: With fewer moving parts & quality motors, you spend less on service. Morca highlights minimal upkeep and durable design.
- Environmentally friendly: A true “solar energy pumping system” uses renewable energy and reduces carbon footprint.
- Versatility: You get a system usable for agriculture (large fields), domestic water, and industrial use.
- Government incentives: Often, you can get subsidies or favourable financing thanks to renewable-energy support.
Real-World Applications and Efficiency Tips
1. In agriculture: Use a solar pump for agriculture that’s sized properly so you don’t run short on irrigation. For example, use 3–4 HP models for 300–500 ft wells (Morca lists packages for 300-550 ft depth). (Morca Pumps)
2. In homes or farms: A solar electric water pump for a borewell can maintain a household supply even in blackouts.
3.Efficiency tips:
- Clean panels regularly for maximum output.
- Use timers or float switches so you operate when sunlight is strong.
- Use a storage tank so the pump can run when the sun is best, store water for use later.
- Monitor flow and head to ensure the system still matches conditions (water table can change).
By using these tips, you maximise the value of the system and ensure your investment in a solar power pump system pays off.
Key Takeaways
- A solar pump uses sunlight to run water-pumping systems, no fuel, no grid power.
- Matching head, flow, and sunlight determines the correct power rating of the system
- Morca Pumps offers clear specs: from 600 W BLDC surface units to 1500 W deep-well models.
- Big benefits: cost savings, reliability during outages, low maintenance, and eco-friendly operations.
- Real-world success depends on the correct sizing and good installation of the solar water pumps for agriculture or domestic needs.
FAQs
It’s used to move water for irrigation, homes, livestock or industries using panels instead of grid power.
DC solar pumps are efficient for solar-direct setups; AC pumps suit hybrid or grid-connected systems.
Yes, many solar pumps run directly during sunlight hours without a battery bank if you match flow to peak sun.
Yes, solar systems can use an inverter to convert DC to AC, allowing traditional pump motors to run. In that case, it still becomes a solar powered pump setup.
Under India’s scheme, the upfront cost of a good solar pump may be partly subsidised; various models for deep wells (e.g., 3 HP–4 HP) are available from Morca at package prices; you’ll want to check local subsidy eligibility and installer quotes.
