Solar Pump vs Electric Pump

Complete Guide to Cost, Efficiency & Best Use Cases

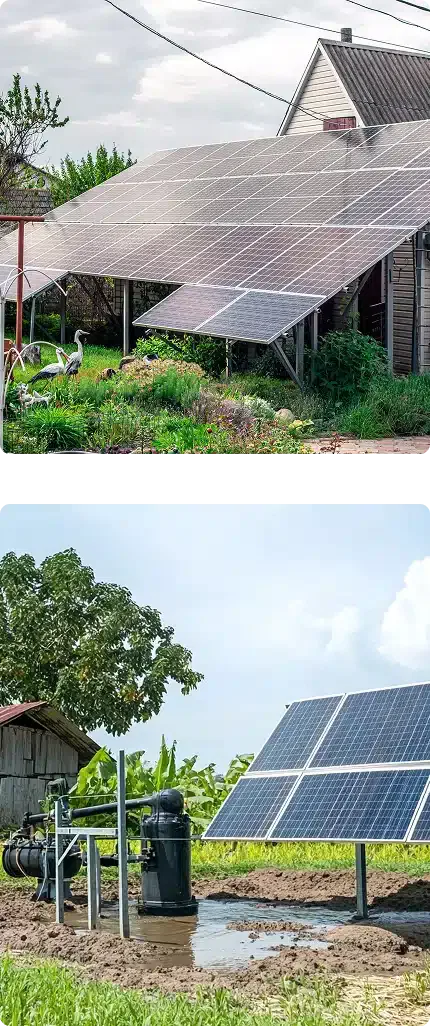

What Is a Solar Water Pump and How Does It Work?

A solar water pump is a sophisticated system designed to harness the limitless power of the sun to lift water from various sources. Unlike a traditional electric water pump, which relies on the grid, this system is entirely self-sustaining, making it one of the most reliable off-grid water options.

The working principle is rooted in the photovoltaic effect. When sunlight hits the solar pump components, specifically the PV panels, it excites electrons to create a direct current (DC). This current is then managed by a solar pump connection to the controller, which drives the solar motor pump. At Morca, our systems are optimized for sustainable water systems, ensuring that even in low-light conditions, the pump maintains a steady discharge.

Solar Pump Components Explained (Panels, Controller, Motor)

To understand why a solar pump is a pinnacle of pumping technology analysis, one must look at its core parts. A high-quality solar power pump system from Morca consists of three primary high-performance elements:

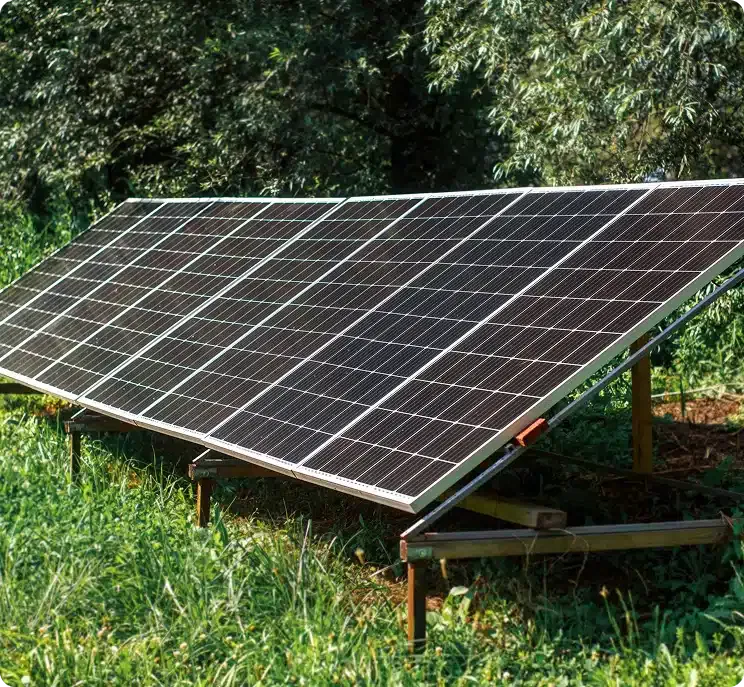

Solar Panels (Photovoltaic Modules): These act as the energy generator. Morca uses high-efficiency Mono Perc Half-Cut modules that convert solar irradiance into DC electricity.
Solar Water Pump Controller: This is the brain of the system. It uses MPPT (Maximum Power Point Tracking) technology to regulate the voltage and ensure the motor receives the maximum possible power from the solar pump connection.
The Motor (BLDC or AC): Most Morca systems feature a BLDC Solar Pump motor. This brushless design reduces friction, leading to higher electric pump efficiency when compared to standard brushed motors.
Mounting Structures & Cables: Morca provides galvanised iron (GI) structures to withstand harsh weather, alongside specialised Solar Pump Installation cables designed for minimal power loss.

Types of Solar Pumps: Surface, Submersible & Deep Well Pumps

When evaluating Solar Pump vs Electric Pump use cases, the type of pump you choose depends entirely on your water source. Morca offers a diverse range of water pumping solutions tailored for every depth:

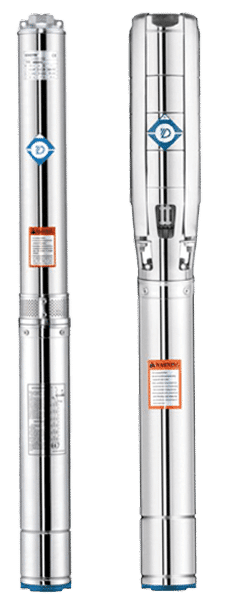

Solar Submersible Pump: These are designed to be fully submerged in water. They are the ideal solar pump for deep well applications, capable of pushing water from great depths (up to 550 feet) to the surface.
Solar Open Well Pump: Specifically built for open wells or tanks where the water level is within 100 feet. These are popular for solar irrigation systems in rural areas.
Solar Monoblock Pump: These are surface-mounted pumps used for shallow water sources like ponds or for boosting water pressure in domestic sustainable water systems.
Deep Well Solar Pump: Engineered for extreme depths, these utilize high-stage impellers to maintain a high flow rate even when the vertical lift is significant.

Solar Pump Cost in India: Price, Installation & Maintenance

The cost of solar pump systems at Morca is categorized by technology and lift capacity. While the initial investment is higher than an electric pump, the zero-rupee monthly bill makes it the ultimate renewable energy water pumping solution.

Morca Official System Pricing (2026):
1. 1 HP Solar Borewell Package: ₹97,749 (Includes high-efficiency submersible motor, panels, and controller).
2. 3 HP V4 Solar Submersible Pump: ₹1,40,000 – ₹1,85,000 (Price varies based on DC vs. AC technology and total head).
3. 5 HP Solar Deep Well Pump: ₹2,85,000 – ₹3,80,000 (Designed for high-discharge solar irrigation systems).
4. 1 HP Solar Open Well/Monoblock: Starting from ₹13,801 (Pump unit only) up to ₹90,000 (Full kit).

Solar Pump Installation: A professional solar pump installation is vital to protect your solar pump benefits. Morca provides expert setup services ranging from ₹10,000 to ₹20,000. This covers the assembly of the hot-dipped galvanised iron (GI) mounting structure, precise alignment for maximum solar power advantages, and secure DC wiring to prevent energy loss.
Maintenance Requirements: One of the greatest solar energy advantages is the lack of moving parts in the power source. Unlike an electric water pump that suffers from grid-related motor burnout, a Morca solar pump requires:

1. Bi-weekly cleaning of the solar panels to ensure maximum sunlight absorption.

2. Half-yearly inspection of the solar pump connection and cable integrity.

3. Controller Check: Monitoring the digital interface for any safety alerts (like dry-run protection).

Solar Pump Subsidy & Government Schemes (PM KUSUM Explained)

To make the Solar Pump vs Electric Pump transition easier for farmers, the Government of India actively promotes the PM KUSUM Scheme. This initiative is a cornerstone for renewable energy comparison, as it drastically reduces the financial burden on the end-user.

Financial Breakdown: Under the current 2026 guidelines, the government provides a 60% subsidy on the total cost of solar pump installations.
Farmer Contribution: The farmer usually only pays 10% of the cost upfront, while the remaining 30% can be covered via bank loans at low interest rates.
Income Generation: A unique advantage over a standard electric water pump is the ability to sell surplus energy back to the grid, transforming your solar pump from a utility into an income-generating asset.
Eligibility: The scheme specifically supports off-grid solar pumps (Component B) and the solarisation of existing grid-connected pumps (Component C), ensuring sustainable water systems are available in even the most remote areas.

BLDC Solar Pump vs Normal Solar Pump: Which Is Better?

When analysing pumping technology, the motor type is the biggest difference when it comes to performance. While a normal solar pump uses a standard AC induction motor, the Bldc Solar Pump (Brushless DC) is the gold standard for energy-efficient water solutions.

Superior Efficiency: A Bldc Solar Pump is roughly 15-20% more efficient than a normal AC pump. This means it can start pumping water earlier in the morning and continue later into the evening compared to a standard electric water pump.
Heat Reduction: Because it is "brushless," there is less internal friction. This prevents the overheating issues common in an electric pump and extends the motor's lifespan significantly.
Low Light Performance: Morca's Bldc Solar Pump technology is specifically designed to work under fluctuating solar intensity, providing a more consistent water pumping solution on cloudy days.
Cost Factor: Although the initial price of a Bldc Solar Pump is slightly higher, the increased water output per watt of solar power makes it the most cost-effective choice for solar irrigation systems.

Moving forward in our Solar Pump vs Electric Pump guide, we explore the performance metrics and specialised solutions that define modern water management. These three sections highlight how Morca’s engineering ensures that choosing a solar-powered path isn’t just an eco-friendly choice, but a superior technical one for 2026.

Solar Pump Efficiency: Output, Head, and Flow Rate Explained

When evaluating a Solar Pump vs Electric Pump, the efficiency of the motor determines how much water you actually get per unit of power. In a traditional electric water pump, energy is often lost as heat. However, Morca’s solar-powered water pump systems are designed to maximise every ray of sunlight.

Total Dynamic Head (TDH): This is the total "strain" on your pump. It includes the vertical height from the water level to your tank plus the "friction loss" caused by the pipes. Morca pumps are rated for specific head ranges to ensure they don't lose pressure.
Flow Rate (Discharge): This is the volume of water delivered, usually measured in Liters Per Hour (LPH). While a standard electric pump runs at a fixed speed, Morca’s Bldc Solar Pump uses variable speed technology to provide a consistent flow rate even as sunlight intensity changes throughout the day.
Peak Performance: In 2026, Morca’s solar pumping system models achieve over 90% motor efficiency. For example, a 3 HP Morca system can deliver between 45,000 to 75,000 liters of water per day, depending on your local sunlight hours and the depth of your well.

Best Solar Pump for Agriculture & Irrigation

For farmers, the Solar Pump vs Electric Pump choice is a matter of crop security. Relying on an electric pump often means waiting for the grid to turn on—frequently in the middle of the night. A solar pump for agriculture changes this dynamic by providing water exactly when the crops need it most: during the day.

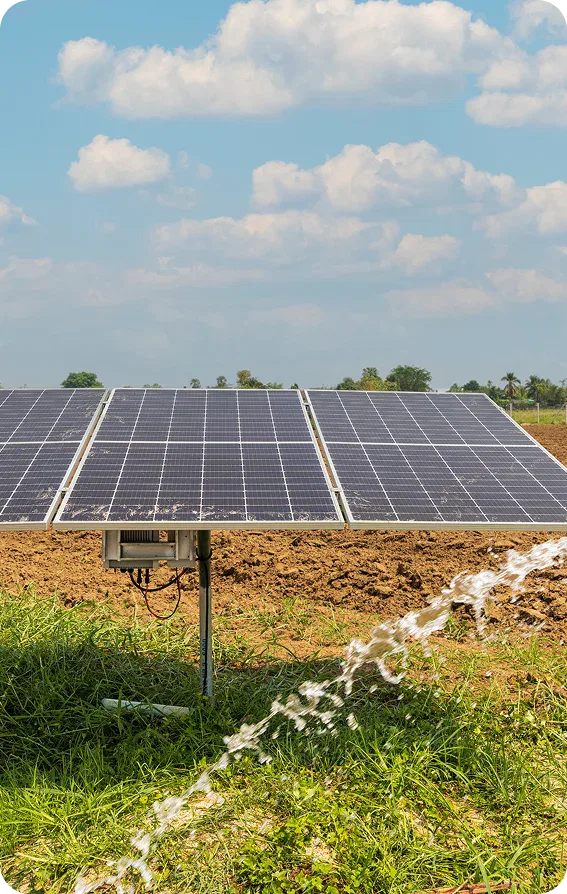

Daytime Reliability: Solar irrigation allows for "Direct-to-Crop" watering during peak evaporation hours, which can be managed better with storage tanks.
Scalability: Whether you have a small vegetable patch or a 10-acre grain field, Morca offers specialised solar irrigation systems.
Original Morca Solutions for Farmers:
Solar Open Well Pumps (1 HP - 2 HP): Best for canal-side farms or open wells, with prices starting from ₹13,801 for the pump unit.
Solar Submersible Pumps (3 HP - 5 HP): The "workhorses" of Indian agriculture, designed for large-scale flooding or drip irrigation setups.
High-Efficiency Controllers: Morca's controllers include Dry Run Protection, ensuring that if the water source runs low, the pump stops automatically to prevent damage, a feature often missing in standard electric water pump setups.

Solar Pump for Deep Borewells: Selection Guide

Lifting water from 300 to 550 feet requires specialised pumping technology analysis. In deep-bore scenarios, a standard electric pump consumes massive amounts of power. A solar pump for deep well use, however, is engineered with high-stage stainless steel impellers to handle the vertical weight of the water column.

Selection Factor 1: The Pump Head: For deep wells, you must choose a pump where the "Max Head" is at least 20% higher than your actual depth to account for seasonal water level drops.
Selection Factor 2: Motor Type: For depths beyond 200 feet, Morca recommends a dc submersible pump with a BLDC motor. These motors provide higher torque, which is essential for pushing water up long vertical pipes.
Morca’s Deep Well Powerhouse (2026 Pricing):
4 HP / 5 HP Deep Well Sets: Priced between ₹2,65,000 and ₹3,80,000, these complete packages include 5000W+ of solar panels to ensure consistent discharge from depths of up to 550 feet.
Construction: All Morca deep-well units are built with SS-304/316 Stainless Steel, providing a 15–20 year lifespan against the corrosive minerals often found in deep groundwater.

Off-Grid Solar Pumps for Rural & Remote Areas

In many parts of India, the Solar Pump vs Electric Pump debate is settled by the simple fact that grid electricity is either unreliable or completely unavailable. For these locations, off-grid solar pumps are not just an alternative; they are the only viable water pumping solution.

Energy Independence: Unlike a traditional electric pump that leaves you dependent on DISCOM power schedules, a Morca solar water pump runs independently. It provides a steady water supply for livestock watering and domestic use as long as the sun is shining.
Cost of Remote Living: Extending a power line to a remote farm can cost lakhs in infrastructure. A solar pump installation eliminates this need entirely.
Morca’s Rural Powerhouses (2026 Prices):
Solar Open Well BLDC Pump (1 HP): Priced at ₹13,801 (pump unit), these are perfect for drawing water from rivers or open wells in remote villages.
Solar Submersible Pumps: For deep borewells in hilly or rural terrains, complete sets provide an all-in-one renewable energy water pumping solution that requires zero monthly bills.

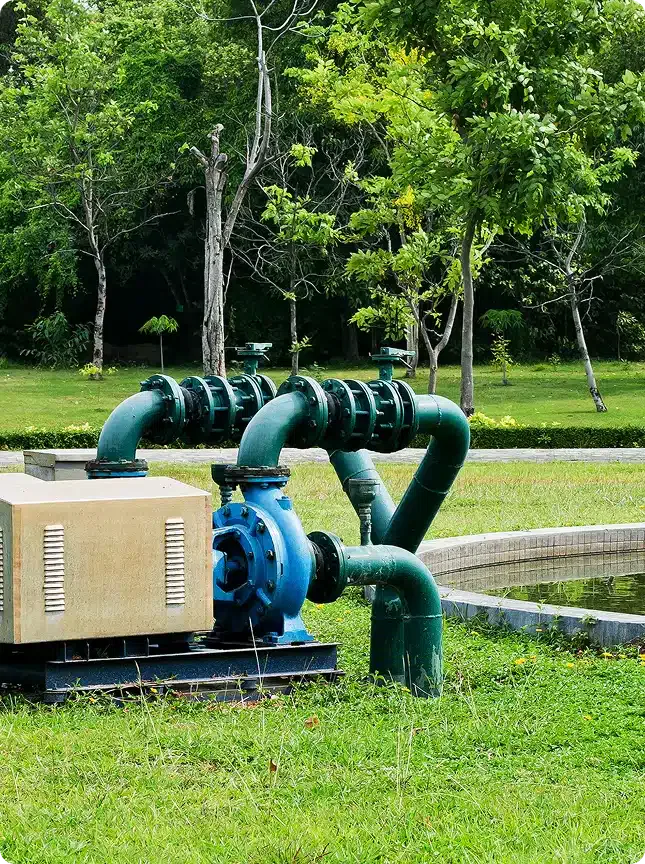

What Is an Electric Water Pump and How Does It Work?

To understand the Solar Pump vs Electric Pump dynamic, we must look at the traditional standard. An electric water pump is a machine that converts grid electricity into mechanical energy to move water.

The Mechanism: It typically uses an AC induction motor. When you flip the switch, electricity creates a magnetic field that spins the submersible motor's impeller, creating the suction needed to lift water.
The Grid Connection: These pumps require a stable 220V or 440V electric pump connection. While the initial electric water pump unit is affordable—with Morca's basic 1 HP models starting as low as ₹6,000 to ₹10,000—the true cost lies in the ongoing electricity bills and the risk of motor burnout during voltage fluctuations.
Maintenance: Because they rely on the grid, these pumps are prone to damage from "single-phasing" or power surges, often requiring regular winding repairs.

Types of Electric Pumps for Home and Agriculture

Morca provides a variety of grid-powered water pumping solutions for those who have reliable electricity but need high-performance hardware. Understanding these types helps in the Solar Pump vs Electric Pump selection process:

Continuing our Solar Pump vs Electric Pump pillar page, we now dive into the direct comparison of operating costs and the technical efficiency that separates these two pumping worlds.

Domestic Submersible Pumps (V4): These are the most common for homes. A 1 HP submersible pump 1 hp price typically falls between ₹6,000 and ₹10,000, making it a low-cost entry point for residential water supply.
Centrifugal Monoblock Pumps: Best for lifting water from ground-level sumps to overhead tanks. These are known for high electric pump efficiency in low-head applications.
Agricultural Submersible Pumps (V6/V8): Heavy-duty pumps for large-scale farming. A 5 hp submersible pump for irrigation ranges from ₹35,000 to ₹55,000. While powerful, their running cost can exceed ₹5,000–₹8,000 per month in electricity charges, which is why many farmers are now switching to the Solar Pump vs Electric Pump alternative.

Electric Pump Cost vs Running Cost: Complete Breakdown

When people compare a Solar Pump vs Electric Pump, they often only look at the price tag on the box. However, the real story of the electric pump cost vs running cost unfolds over years of monthly bills and maintenance checks.

Purchase Price: A standard Morca electric water pump is significantly cheaper upfront. For instance, a submersible pump 1 hp price ranges from ₹6,000 to ₹10,000.
Monthly Electricity Bills: This is where the cost of an electric pump adds up. Depending on your state's tariff, running a 1 HP pump for 4–5 hours daily can cost between ₹1,200 and ₹2,500 per month. Over 5 years, you could spend over ₹1,00,000 just on power, more than the cost of a full solar set.
Hidden Costs: Frequent voltage fluctuations in rural areas often lead to motor winding failures. Repairing a burnt submersible motor can cost ₹2,000 to ₹4,000 each time, a problem rarely seen in stabilized solar power pump system setups.
Comparison: While the cost of solar pump systems is higher initially (starting at ₹90,000 for a full 1 HP set), the running cost is ₹0. At Morca, we’ve found that most users achieve a "break-even" point in just 3 to 4 years.

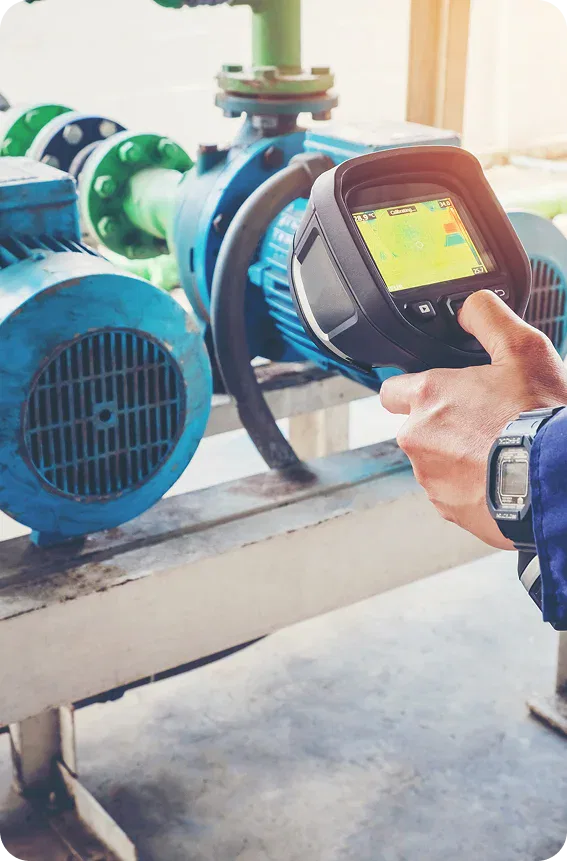

Electric Pump Efficiency: Power Consumption Explained

In the Solar Pump vs Electric Pump efficiency battle, the way a pump uses electricity is vital. Electric pump efficiency refers to how much of the electricity you pay for actually moves water versus how much is wasted as heat or vibration.

AC Induction Motors: Most standard electric pumps use AC induction motors. While reliable, they often have lower efficiency at partial loads and can draw high "starting currents," which puts a strain on your home’s wiring.
Power Factor: Many generic pumps have a poor power factor, meaning they draw more current than they actually need to do the work. Morca’s electric range is engineered for high-energy-efficient water solutions, keeping your meter from spinning faster than it should.
Pumping Output: A high-efficiency Morca electric pump ensures that for every unit of electricity consumed, you get the maximum possible Liters Per Minute (LPM). If your pump is old or improperly sized, you might be paying for 1.5 kW of power but only getting the water output of a 1 kW pump.

Electric Pump Installation and Maintenance Guide

Proper Solar Pump Installation and electric pump setup are the foundations of long-term performance. Even the best submersible water pump will fail if the installation is handled poorly.

Key Installation Steps:

Cable Selection: Always use 3-core flat submersible cables. For a 1 HP pump, 2.5 sq mm is standard. Using thinner wires leads to voltage drops and motor heating.
Control Box: Never run an electric water pump without a high-quality starter or control box that includes "Overload Protection."
Check Valve: Ensure a non-return valve (NRV) is installed to prevent water from flowing back and spinning the pump in reverse when turned off.

Maintenance Pointers:

Voltage Monitoring: Always check that the voltage is within the 180V–230V range before switching the pump on.
Annual Inspection: Pull the pump every 2 years to check the submersible motor's sand guard and oil levels (for oil-filled models).
Pipe Integrity: Check for leaks in the column pipe; even a small leak forces the pump to work twice as hard, killing its efficiency.

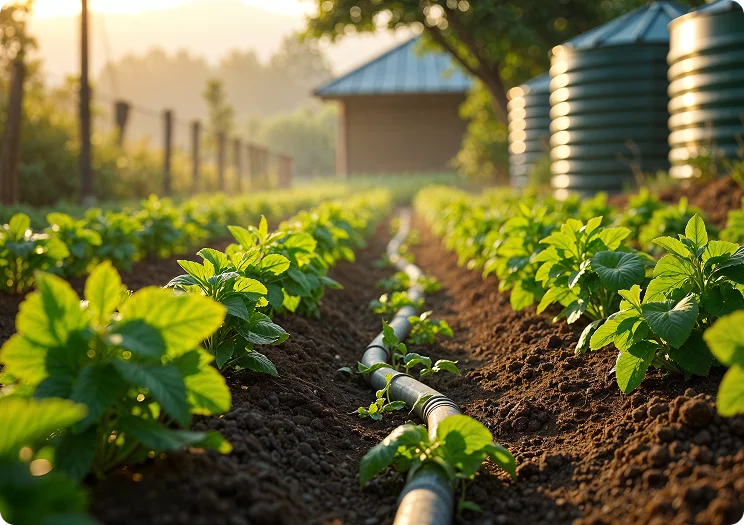

Solar Pump vs Electric Pump for Agriculture: Which Is Better?

For Indian farmers, the Solar Pump vs Electric Pump debate is a choice between energy freedom and grid dependency. In 2026, agriculture will become the primary driver for solar adoption due to the sheer scale of water required for crops like paddy, sugarcane, and wheat.

Reliability: An electric water pump often forces farmers to irrigate at night when the grid is less loaded. A solar pump for agriculture allows for daytime irrigation, matching the peak water absorption period of the crops.
Operational Freedom: With a solar-powered irrigation system, you are no longer at the mercy of load shedding or voltage drops that can burn out a standard submersible motor.
Cost Efficiency: While a 3 HP electric pump can cost you roughly ₹4,000–₹6,000 in monthly bills, the cost of solar pump systems from Morca (starting at ₹1,40,000 for a full 3 HP setup) eliminates these bills forever.
Verdict: For large-scale irrigation and off-grid farms, the Solar Pump vs Electric Pump winner is clearly solar. It pays for itself in just a few seasons and offers a 25-year lifespan.

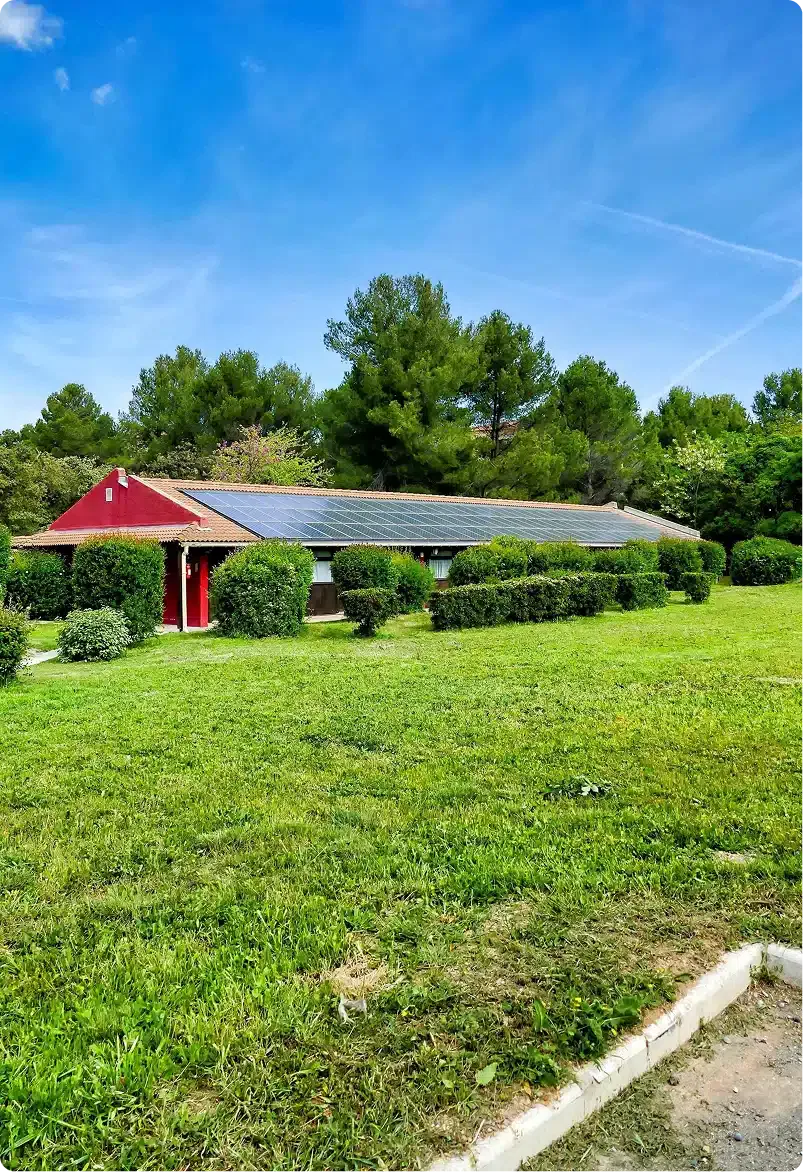

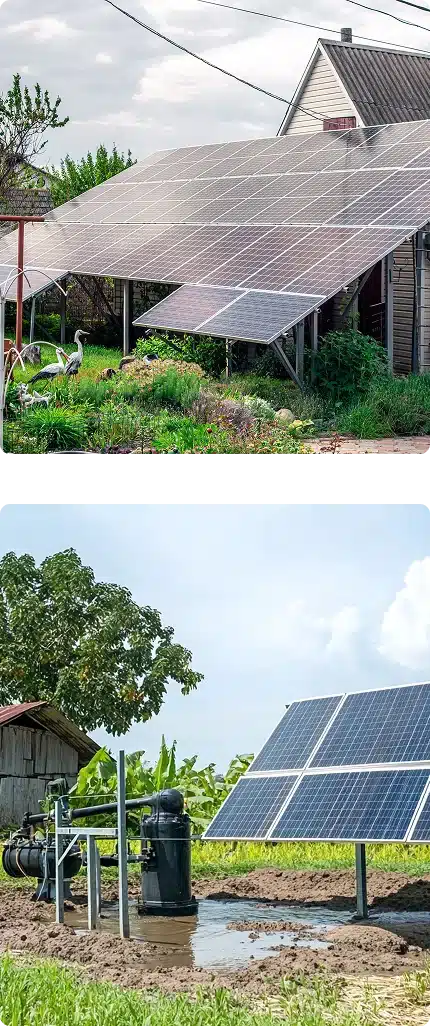

Solar Pump vs Electric Pump for Home Use

When comparing a Solar Pump vs Electric Pump for residential needs, the decision often comes down to your local infrastructure. Most homes have a reliable grid connection, making the low initial cost of an electric pump attractive, but solar is quickly becoming the premium choice for modern, green homes.

Space & Aesthetics: A solar power pump system requires rooftop space for panels. If you have a terrace, a 1 HP solar submersible pump can keep your overhead tank full without ever touching your electricity meter.
Backup Power: During a blackout, a standard electric water pump is useless. A solar pump continues to work, ensuring your family has water even when the neighborhood is in the dark.
Morca Home Solutions (2026):

Solar Pump vs Electric Pump for Villages and Rural Areas

In rural India, the Solar Pump vs Electric Pump comparison is about basic survival and community growth. Many villages suffer from “single-phase” power that isn’t strong enough to run a heavy submersible motor, making solar the ultimate equalizer.

Solving Voltage Issues: Standard electric pumps often fail to start or overheat in villages due to low voltage. Morca's Bldc Solar Pump uses a controller that manages fluctuating sunlight to provide a soft start, preventing motor damage.
Community Water Supply: Large-scale off-grid solar pumps are now used for community tanks. By installing a 5 HP solar deep well pump (Morca price: ₹2,85,000 – ₹3,80,000), a village can secure clean drinking water for hundreds of families without needing a single electric pole.
Livestock & Sustainability: For livestock watering, solar is the most practical water pumping solution. Cattle sheds are often far from power lines, and a small dc solar pump setup can provide fresh water to animals throughout the day automatically.
Verdict: Verdict: In rural and remote regions, solar isn't just a choice; it's the most reliable sustainable water system available in 2026.

In our final technical exploration for this Solar Pump vs Electric Pump pillar page, we address specialized use cases and look toward the shifting landscape of 2026 water management.

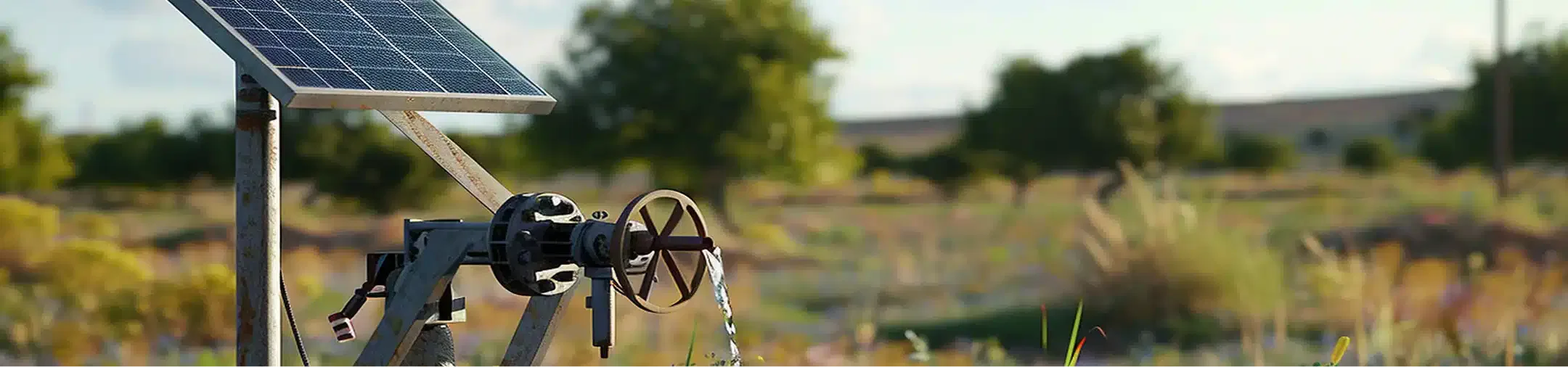

Solar Pump vs Electric Pump for Livestock Watering

Keeping animals hydrated is one of the most critical aspects of farming, but it often happens in areas far from the main power grid. When choosing between a Solar Pump vs Electric Pump for livestock, the “remote” factor usually makes solar the winner.

Autonomous Hydration:

An electric pump requires a long, expensive cable run to reach distant pastures. In contrast, a solar-powered water pump can be installed directly at the trough. It fills the tank automatically during the day, providing fresh water exactly when cattle are most active.

Cost of Infrastructure:

Installing a Morca solar water fountain pump or a small dc submersible pump for a cattle shed is often cheaper than the labor and material cost of digging trenches for electric wires.

Morca’s Livestock Solutions (2026 Pricing):

In our deep dive into the Solar Pump vs Electric Pump comparison, we highlight the foundational reasons why renewable energy is winning. At Morca, our 2026 solar power pump system technology offers benefits that traditional grid pumps cannot match.

Solar Energy Advantages for Water Pumping Systems

Choosing a solar pump means choosing a resilient way of living. Here are the key advantages:

01

Zero Operating Costs:

Once your solar pump installation is complete, moving water is 100% free. Over 20 years, this translates to massive savings compared to an electric pump.

02

Grid Independence:

Grid power often suffers from low voltage. Solar systems provide a steady solar pump connection that is immune to blackouts.

03

Minimal Maintenance:

With fewer moving parts, Morca systems require nothing more than bi-weekly cleaning to stay efficient.

04

Environmental Stewardship:

A solar-powered water pump operates silently with zero carbon emissions.

05

Versatility

You can install a DC submersible pump in remote pastures or deep borewells without the extreme cost of laying electric lines.

Is Solar Pumping the Future of Water Supply Systems?

As we analyze pumping technology analysis in 2026, the trend is moving away from the fossil-fuel-heavy grid. The Solar Pump vs Electric Pump debate is increasingly shifting toward solar as the global standard for sustainable water systems.

Smart Integration: Future systems from Morca are now incorporating mobile solar pump monitoring. This allows you to check your flow rate and system health from your phone, a feature that is much harder to implement on a basic electric water pump.
Climate Resilience: With electricity prices rising annually, the fixed cost of solar pump systems offers a "hedge" against inflation. As the grid faces more strain, the independence of a solar power pump system becomes a major asset for national food security.
Technological Edge: Morca’s 2026 Bldc Solar Pump models are already outperforming traditional AC pumps in terms of "liters-per-watt," proving that renewable energy isn't just a "green" choice, it’s the more efficient choice.

Renewable Energy Water Pumping Solutions Explained

To wrap up our comparison, we must understand that Solar Pump vs Electric Pump isn’t just about the motor; it’s about the entire energy ecosystem. Morca’s renewable energy water pumping solutions are designed to be “plug-and-play” ecosystems.

The DC Advantage: By using a DC submersible pump, you eliminate the need for an inverter, which is a common failure point in "solarized" electric systems. Direct DC power from the panels to the submersible motor means less energy is lost as heat.
Storage vs. Batteries: While some ask "do solar pumps need batteries?", the 2026 standard for off-grid solar pumps is to store water in an elevated tank rather than storing electricity in expensive batteries. This "water-as-storage" method is 40% more cost-effective for solar irrigation systems.
Morca’s Commitment: Whether you choose a deep well solar pump for a 500ft borewell or a surface monoblock pump for a garden, Morca ensures that every component, from the solar pump controller to the GI structure, is built for a 20+ year lifecycle.

Frequently Asked Questions

Are Solar-Powered Water Pumps Any Good?

Yes. In 2026, they are often more reliable than electric water pumps in rural areas because they are not affected by power cuts or voltage drops.

How Many AC Can Run in a 3 kW solar system?

While a 3KW solar system is primarily designed to run a 3 HP solar pump, it can typically run one 1.5-ton 5-star AC during peak sunlight hours if converted for home use.

Do Solar Pumps Need Batteries?

No. Most Morca solar irrigation pumps run directly off the panels. It is much cheaper to pump water into a tank during the day for use at night than to use batteries.

How Do I Choose a Solar Pump?

You must match the pump’s “Max Head” to your well depth and ensure your solar panel pump for fountain or farm has enough wattage (typically 1.2kW of panels per 1 HP of motor).

Can Solar Pumps Run on Electricity?

Yes. Morca offers AC/DC Solar Submersible Pumps (like our 3 HP model at ₹37,241 for the pump unit) that can switch to grid power at night or during the monsoon.
